Texas Instruments
MSP430F6638IZQWT
16-bit MCU, 20MHz, 256KB Flash, 18KB RAM, 12-bit ADC/DAC, USB, VFBGA
16-bit microcontroller (MCU) operating at up to 20MHz, featuring 256KB Flash memory and 18KB SRAM. This MCU includes a 12-bit Analog-to-Digital Converter (ADC) with 16 channels, a 12-bit Digital-to-Analog Converter (DAC), and a comparator. Connectivity options include I2C, SPI, USB, IrDA, and multiple UART/USART interfaces. It offers 74 programmable I/O pins, 4 timers/counters, and integrated peripherals such as DMA, POR, PWM, and a watchdog timer. Packaged in a VFBGA, this lead-free and RoHS-compliant component operates from -40°C to 85°C with supply voltages between 1.8V and 3.6V.
Frequency20MHz
PackageVFBGA
Quick Jump:
Technical Specifications
Texas Instruments MSP430F6638IZQWT technical specifications.
General
| Package/Case | VFBGA |
| Core Architecture | CPUXV2 |
| Data Bus Width | 16b |
| Frequency | 20MHz |
| Interface | I2C, SPI, USB, IrDA, UART, USART, SCI |
| Lead Free | Lead Free |
| Max Frequency | 25MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 16 |
| Number of ADC Channels | 16 |
| Number of GPIO | 74 |
| Number of I/Os | 74 |
| Number of Programmable I/O | 74 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 18KB |
| RoHS Compliant | Yes |
| Series | MSP430F6xx |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MSP430F6638IZQWT Datasheet
Download the complete datasheet for Texas Instruments MSP430F6638IZQWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

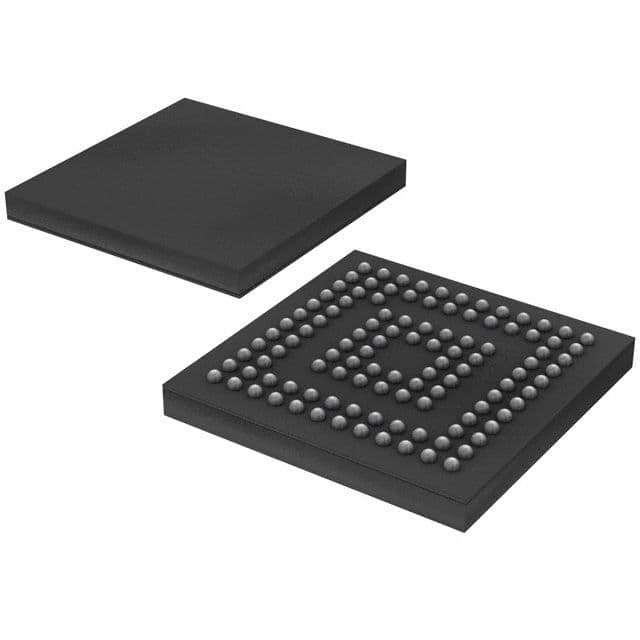

Product Images
