16-bit microcontroller with 25MHz CPUXV2 core, featuring 96KB Flash and 4KB RAM. Includes 8 Sigma-Delta ADCs, LCD controller, real-time clock, and 72 GPIO pins. Offers I2C, SPI, IrDA, UART, USART, SCI, and LIN interfaces. Operates from -40°C to 85°C with a 3.6V supply voltage. Peripherals include Brown-out Detect, POR, PWM, WDT, DMA, and LCD support.
Frequency25MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F6734IPN technical specifications.
General
Package/Case
LQFP
Core Architecture
CPUXV2
Data Bus Width
16b
Frequency
25MHz
Interface
I2C, SPI, IrDA, UART, USART, SCI, LIN
Lead Free
Lead Free
Max Frequency
25MHz
Max Operating Temperature
85°C
Memory Size
96KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
72
Number of I/Os
52
Number of Programmable I/O
52
Number of Timers/Counters
4
Number of UART Channels
3
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
MSP430F6xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F6734IPN Datasheet
Download the complete datasheet for Texas Instruments MSP430F6734IPN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

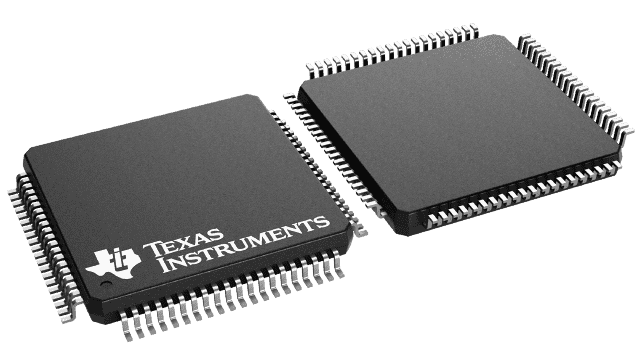

Product Images
