16-bit microcontroller featuring a 25MHz CPUXV2 core, 96KB Flash memory, and 4KB RAM. This SoC offers 8 Sigma-Delta ADCs, an integrated LCD controller, and a real-time clock. Connectivity includes I2C, SPI, IrDA, and 3 UART channels, with 52 programmable I/Os. Operates from -40°C to 85°C with a 3.6V supply voltage, packaged in an 80-pin LQFP. Peripherals include brown-out detect, POR, PWM, WDT, and DMA.
Frequency25MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F6734IPNR technical specifications.
General
Package/Case
LQFP
Core Architecture
CPUXV2
Data Bus Width
16b
Frequency
25MHz
Interface
I2C, SPI, IrDA, UART, USART, SCI
Lead Free
Lead Free
Max Frequency
25MHz
Max Operating Temperature
85°C
Memory Size
96KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
72
Number of I/Os
52
Number of Programmable I/O
52
Number of Timers/Counters
4
Number of UART Channels
3
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
1000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
MSP430F6xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F6734IPNR Datasheet
Download the complete datasheet for Texas Instruments MSP430F6734IPNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

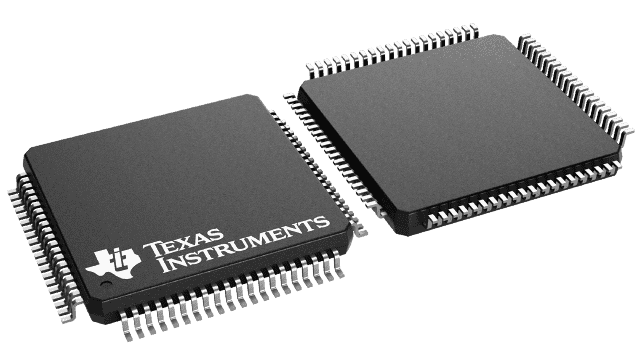

Product Images
