16-bit microcontroller featuring a 25MHz core, 128KB Flash and 4KB RAM. Includes three Sigma-Delta ADCs, an LCD controller, Real-Time Clock, and a watchdog timer. Offers extensive connectivity with I2C, SPI, IrDA, UART, USART, SCI, and LIN interfaces. Operates from 1.8V to 3.6V supply, with 72 GPIO pins and 4 timers. Packaged in a 100-pin LQFP, this RoHS compliant component operates from -40°C to 85°C.
Frequency25MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F6735IPZ technical specifications.
General
Package/Case
LQFP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
25MHz
Height
1.45mm
Interface
I2C, SPI, IrDA, UART, USART, SCI, LIN
Lead Free
Lead Free
Length
14.2mm
Max Frequency
25MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
72
Number of I/Os
72
Number of I2C Channels
1
Number of Programmable I/O
9
Number of SPI Channels
2
Number of Timers/Counters
4
Number of UART Channels
3
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430F6xx
Watchdog Timer
Yes
Width
14.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F6735IPZ Datasheet
Download the complete datasheet for Texas Instruments MSP430F6735IPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

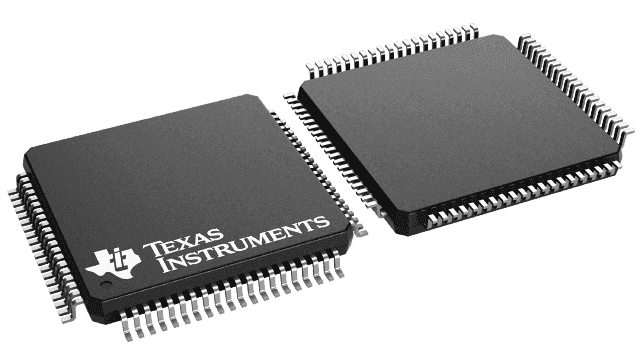

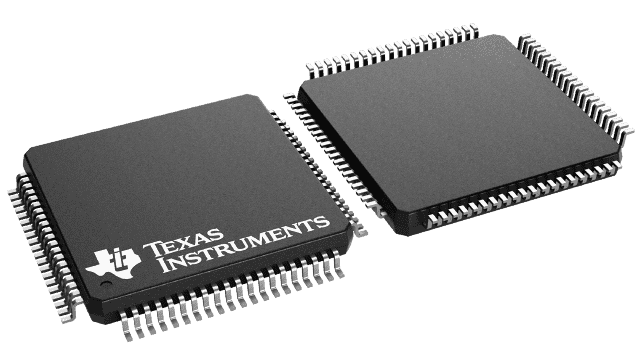

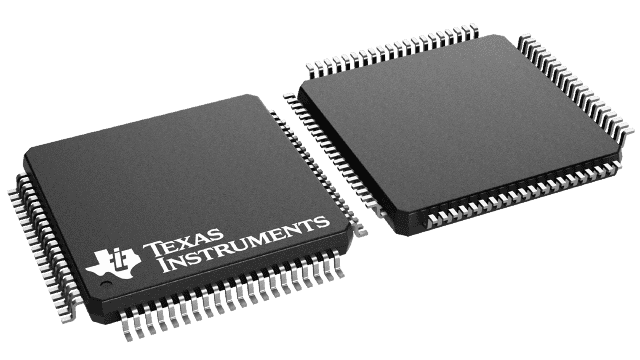

Product Images
