16-bit microcontroller featuring an 8MHz MSP430 core, 48KB FLASH memory, and 2KB SRAM. Includes a 12-bit ADC, dual DAC, DMA controller, and 3 operational amplifiers. Supports SPI, UART, and USART interfaces, with 48 programmable I/Os and 4 timers. Operates from 1.8V to 3.6V, with an operating temperature range of -40°C to 85°C. Packaged in an 80-LQFP, tape and reel.
Frequency8MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments MSP430FG438IPNR technical specifications.
General
Package/Case
LQFP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
8MHz
Interface
SPI, UART, USART
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Memory Size
48KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of A/D Converters
12
Number of GPIO
48
Number of I/Os
48
Number of Programmable I/O
48
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
1000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
MSP430x4xx
Watchdog Timer
Yes
Weight
0.016427oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430FG438IPNR Datasheet
Download the complete datasheet for Texas Instruments MSP430FG438IPNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

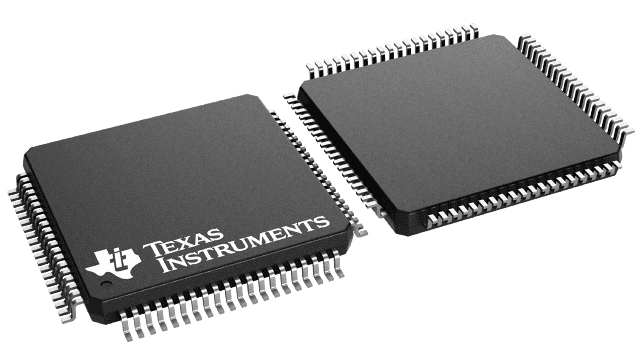

Product Images
