16 MHz, 16-bit microcontroller featuring 0.5KB FLASH and 128B SRAM. This VQFN packaged MCU offers 10 programmable I/Os, one timer/counter, and an internal oscillator. Operating from 1.8V to 3.6V, it includes peripherals like Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Designed for a temperature range of -40°C to 85°C, this RoHS compliant component is supplied on tape and reel.
Frequency16MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments MSP430G2001IRSA16T technical specifications.
General
Package/Case
VQFN
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
512B
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of GPIO
10
Number of I/Os
10
Number of Programmable I/O
10
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
250
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430G2xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430G2001IRSA16T Datasheet
Download the complete datasheet for Texas Instruments MSP430G2001IRSA16T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

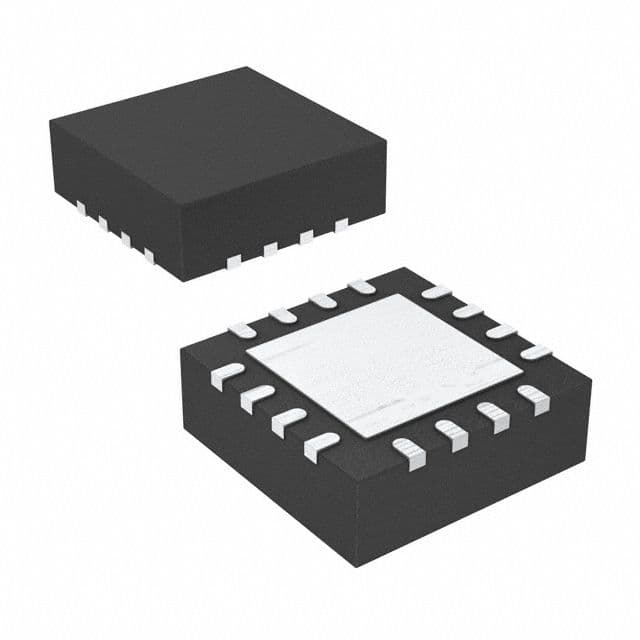

Product Images
