16-bit microcontroller operating at up to 16MHz, featuring 1KB FLASH memory and 128B SRAM. Integrated peripherals include SPI and I2C interfaces, a 16-bit timer, and a watchdog timer. This device offers 10 programmable I/O pins and operates within a voltage range of 1.8V to 3.6V, with an operating temperature range of -40°C to 85°C. The component is supplied in a 16-QFN package and is RoHS compliant.
Frequency16MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments MSP430G2102IRSA16T technical specifications.
General
| Package/Case | VQFN |
| Core Architecture | MSP430 |
| Data Bus Width | 16b |
| Frequency | 16MHz |
| Interface | I2C, SPI |
| Lead Free | Lead Free |
| Max Frequency | 16MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 1KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of GPIO | 16 |
| Number of I/Os | 10 |
| Number of Programmable I/O | 10 |
| Number of Timers/Counters | 1 |
| Oscillator Type | Internal |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 128B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MSP430G2xx |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MSP430G2102IRSA16T Datasheet
Download the complete datasheet for Texas Instruments MSP430G2102IRSA16T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

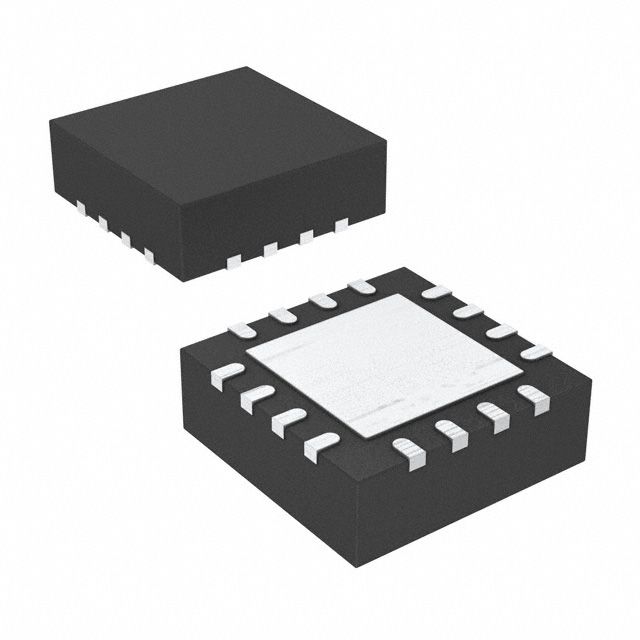

Product Images
