Texas Instruments
MSP430G2231IPW14R
16MHz 16b MCU, 2KB FLASH, 128B SRAM, 8ch 10b ADC, SPI/I2C, 10-GPIO, TSSOP
16-bit microcontroller (MCU) operating at up to 16MHz. Features 2KB FLASH memory and 128B SRAM. Includes 8-channel 10-bit Analog-to-Digital Converter (ADC) and 10 programmable I/O pins. Supports I2C and SPI interfaces, along with a watchdog timer and PWM capabilities. Packaged in a 14-TSSOP, operating from 1.8V to 3.6V supply, with an extended temperature range of -40°C to 85°C.
Frequency16MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments MSP430G2231IPW14R technical specifications.
General
Package/Case
TSSOP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Interface
I2C, SPI
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Memory Size
2KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
10
Number of I/Os
10
Number of Programmable I/O
10
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
2000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430G2xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430G2231IPW14R Datasheet
Download the complete datasheet for Texas Instruments MSP430G2231IPW14R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

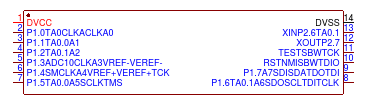

Product Images
