16-bit mixed-signal microcontroller featuring an MSP430 core operating up to 16MHz. Integrated peripherals include 2 timers/counters, 1 UART channel, I2C, SPI, IrDA, and USART interfaces. Offers 4KB FLASH memory, 256B RAM, and 24 GPIO pins with 16 programmable I/O. Operates from 1.8V to 3.6V supply, with a temperature range of -40°C to 85°C. Includes Brown-out Detect/Reset, PWM, and Watchdog Timer functionality.
Frequency16MHz
PackageN
Quick Jump:
Technical Specifications
Texas Instruments MSP430G2303IN20 technical specifications.
General
Package/Case
N
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Interface
I2C, SPI, IrDA, UART, USART, SCI
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
4KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of GPIO
24
Number of Programmable I/O
16
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
20
Packaging
Tray
Peripherals
Brown-out Detect/Reset, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
MSP430G2xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430G2303IN20 Datasheet
Download the complete datasheet for Texas Instruments MSP430G2303IN20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

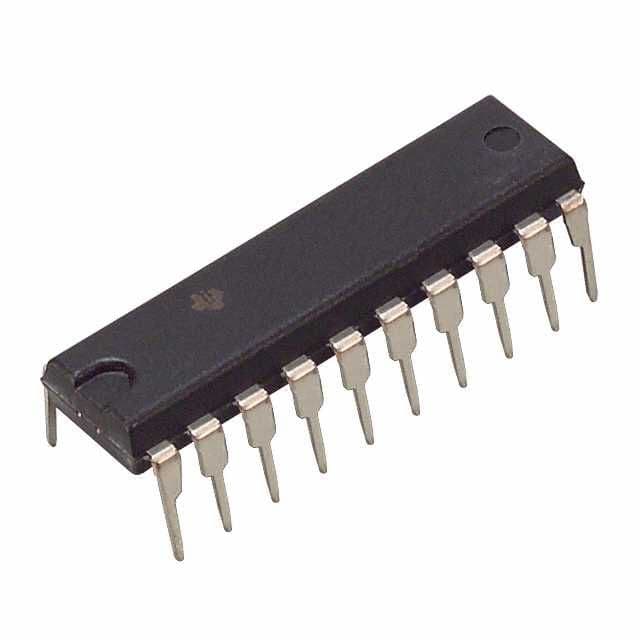

Product Images
