16-bit microcontroller featuring a 16MHz MSP430 core. Offers 4KB FLASH memory and 256B SRAM. Integrated peripherals include a 10-bit ADC with 8 channels, two timers, and multiple communication interfaces such as UART, SPI, and I2C. Operates from 1.8V to 3.6V supply, with a temperature range of -40°C to 85°C. Packaged in a 32-VQFN, this RoHS compliant component is ideal for embedded applications.
Frequency16MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments MSP430G2333IRHB32R technical specifications.
General
Package/Case
VQFN
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Interface
I2C, SPI, IrDA, UART, USART, SCI
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
4KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
24
Number of I/Os
24
Number of Programmable I/O
24
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
3000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
MSP430G2xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430G2333IRHB32R Datasheet
Download the complete datasheet for Texas Instruments MSP430G2333IRHB32R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

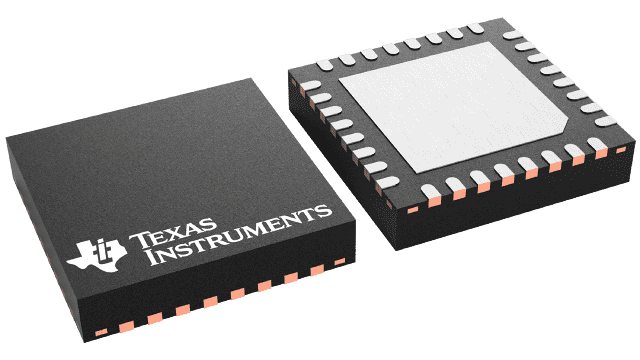

Product Images
