16-bit microcontroller featuring an MSP430 core operating at 16MHz. This MCU offers 8KB of FLASH memory and 512B of SRAM, with 24 programmable I/O pins. Integrated peripherals include UART, SPI, I2C, and two timers, alongside a watchdog timer. Housed in a 28-TSSOP package, it operates from 1.8V to 3.6V and supports temperatures from -40°C to 85°C.
Frequency16MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments MSP430G2403IPW28 technical specifications.
General
Package/Case
TSSOP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Height
1.05mm
Interface
I2C, SPI, IrDA, UART, USART, SCI, LIN
Lead Free
Lead Free
Length
9.8mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of GPIO
24
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
24
Number of SPI Channels
1
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
50
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, PWM, WDT
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430G2xx
Watchdog Timer
Yes
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430G2403IPW28 Datasheet
Download the complete datasheet for Texas Instruments MSP430G2403IPW28 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

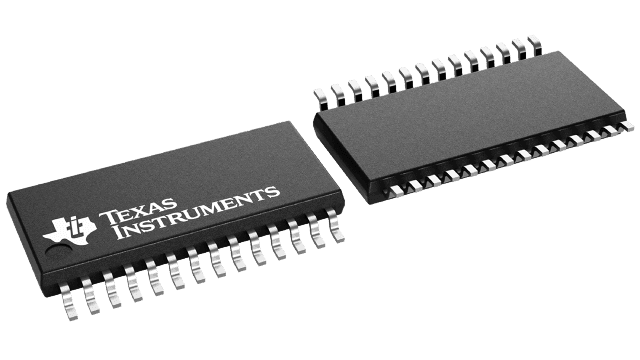

Product Images
