16-bit microcontroller featuring a 16MHz MSP430 core, 8KB FLASH memory, and 512B SRAM. Integrated peripherals include UART, SPI, I2C, and two timers. This QFN-packaged MCU offers 24 programmable I/Os and operates from 1.8V to 3.6V, with an extended temperature range of -40°C to 85°C.
Frequency16MHz
PackageQFN
Quick Jump:
Technical Specifications
Texas Instruments MSP430G2403IRHB32T technical specifications.
General
Package/Case
QFN
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Height
0.9mm
Interface
I2C, SPI, IrDA, UART, USART, SCI, LIN
Lead Free
Lead Free
Length
5mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of ADC Channels
8
Number of GPIO
24
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
24
Number of SPI Channels
1
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
250
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, PWM, WDT, POR
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430G2xx
Watchdog Timer
Yes
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430G2403IRHB32T Datasheet
Download the complete datasheet for Texas Instruments MSP430G2403IRHB32T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

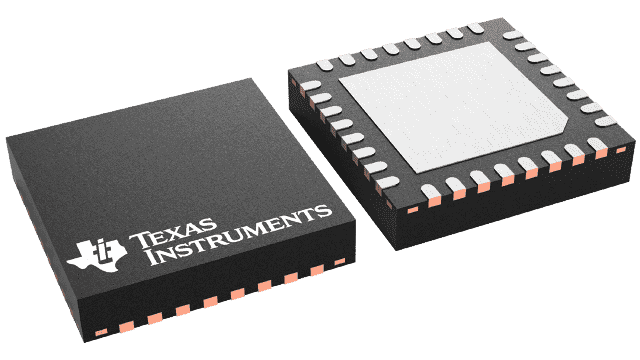

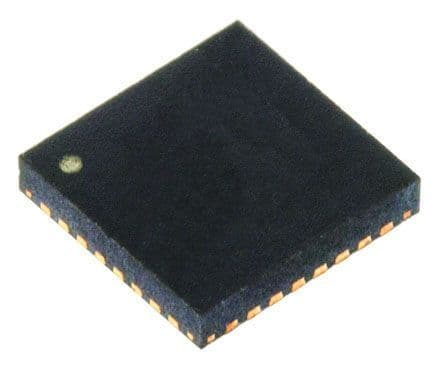

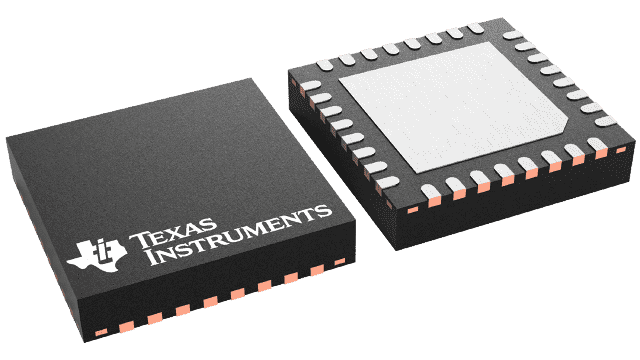

Product Images
