Texas Instruments

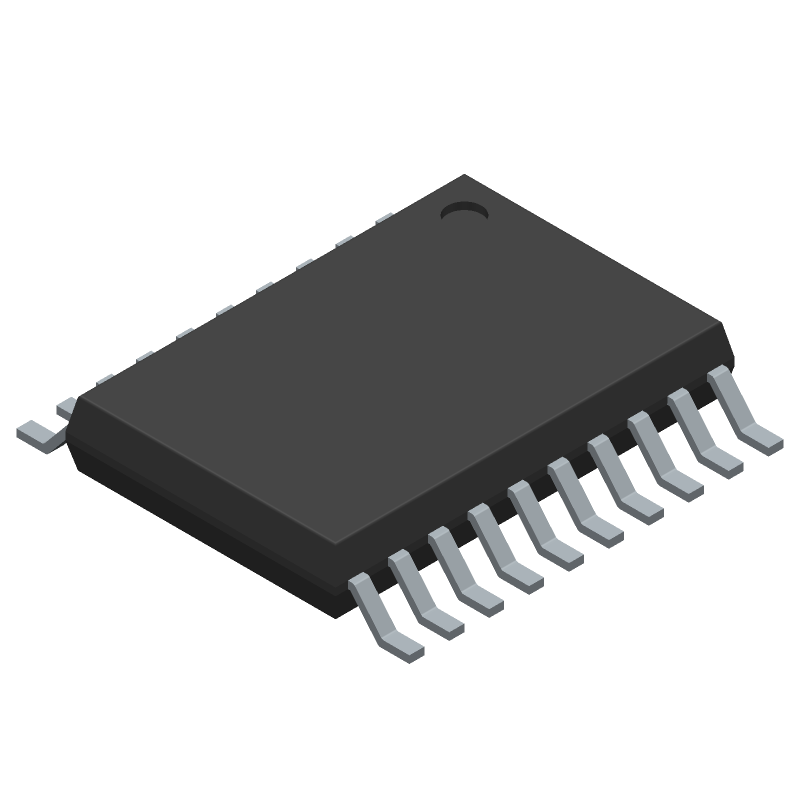

MSP430G2452IPW20R
16MHz 16b MCU, 8KB FLASH, 256B SRAM, 8ch 10-bit ADC, SPI/I2C, 20-TSSOP
16-bit microcontroller (MCU) operating at 16MHz, featuring 8KB FLASH memory and 256B SRAM. This integrated circuit includes an 8-channel 10-bit Analog-to-Digital Converter (ADC), a comparator, and a timer. Connectivity is supported via I2C and SPI interfaces, with 16 programmable I/O pins. Packaged in a 20-TSSOP, it operates from -40°C to 85°C with a supply voltage range of 1.8V to 3.6V. Peripherals include Brown-out Detect/Reset, POR, PWM, WDT, and DMA.
Frequency16MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments MSP430G2452IPW20R technical specifications.
General
Package/Case
TSSOP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Interface
I2C, SPI
Lead Free
Lead Free
Length
6.5mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
16
Number of I/Os
16
Number of Programmable I/O
16
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
1
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430G2xx
Thickness
1mm
Watchdog Timer
Yes
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430G2452IPW20R Datasheet
Download the complete datasheet for Texas Instruments MSP430G2452IPW20R to view detailed technical specifications.
