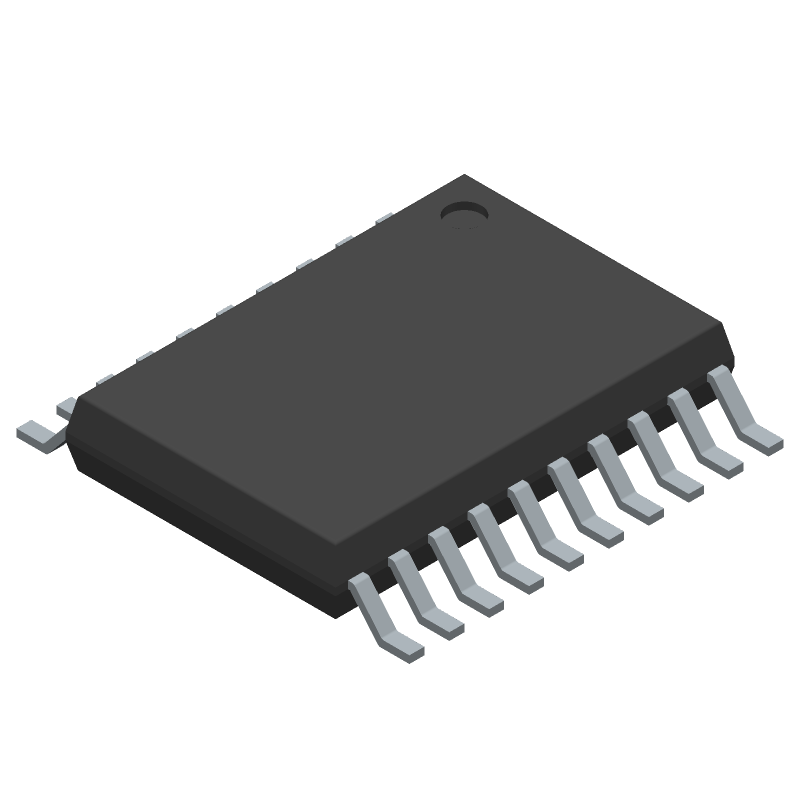

16-bit RISC microcontroller operating at up to 16 MHz. Features 16KB FLASH program memory and 512 bytes of SRAM. Includes a comparator, UART, SPI, and I2C communication interfaces, along with a timer and DMA channels. This 20-terminal device is housed in a 20-TSSOP package and operates within an industrial temperature range of -40°C to 85°C.
Frequency16
Quick Jump:
Technical Specifications
Texas Instruments MSP430G2513IPW20R technical specifications.
General
Max Operating Temperature
85
Number of Terminals
20
Min Operating Temperature
-40
Terminal Position
DUAL
JEDEC Package Code
R-PDSO-G20
Width
4.4
Length
6.5
Pin Count
20
Temperature Grade
INDUSTRIAL
Supply Current-Max
0.42
Supply Voltage-Min
3.3
Supply Voltage-Max
3.6
Clock Frequency-Max
16
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of I/O Lines
16
External Data Bus Width
0
Address Bus Width
0
Bit Size
16
Speed
16
ROM Programmability
FLASH
ROM (words)
16384
RAM (bytes)
512
PWM Channels
YES
Has ADC
NO
DMA Channels
YES
DAC Channels
NO
Compliance
RoHS
Yes
Lead Free
Yes
HTS Code
8542.31.00.01
REACH
Compliant
Military Spec
False
