Dual-channel, low-noise audio operational amplifier with a 10MHz bandwidth. Features 6 nV/√Hz input noise, 100dB voltage gain, and a 9V/µs slew rate. Operates from a dual supply voltage range of 5V to 15V, with a nominal operating voltage of 15V. Housed in an 8-PDIP package, this RoHS compliant component is suitable for general-purpose amplification applications.
PackageP
Current16mA
Quick Jump:
Technical Specifications
Texas Instruments NE5532AP technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
10MHz
Package/Case
P
Common Mode Rejection Ratio
70dB
Dual Supply Voltage
9V
Gain Bandwidth Product
10MHz
Height
4.57mm
Input Bias Current
800nA
Input Offset Voltage (Vos)
4mV
Lead Free
Lead Free
Length
9.81mm
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
5V
Max I/O Voltage
4mV
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Nominal Gain Bandwidth Product
10MHz
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
8mA
Operating Supply Voltage
15V
Output Current
38mA
Output Current per Channel
38mA
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
9V/µs
Supply Current
16mA
Technology
BIPOLAR
Thickness
3.9mm
Unity Gain Bandwidth Product
10MHz
Voltage Gain
100dB
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments NE5532AP Datasheet
Download the complete datasheet for Texas Instruments NE5532AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

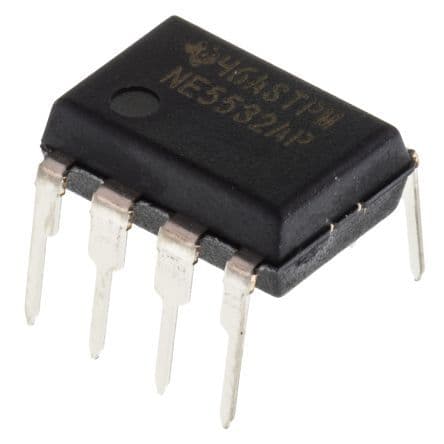

Product Images
