Dual-channel, low-noise operational amplifier with a 10MHz bandwidth and 9V/µs slew rate. Features a 26V output swing, 100dB voltage gain, and 70dB common mode rejection ratio. Designed for general-purpose audio applications, this bipolar IC operates from a 5V to 15V dual supply and is housed in a lead-free, RoHS-compliant 8-SO package. Maximum operating temperature is 70°C.
PackageSOP
Current16mA
Quick Jump:
Technical Specifications
Texas Instruments NE5532PSR technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
10MHz
Package/Case
SOP
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
10MHz
Height
2mm
Input Bias Current
800nA
Input Offset Voltage (Vos)
500uV
Lead Free
Lead Free
Length
6.2mm
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
5V
Max I/O Voltage
4mV
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Nominal Gain Bandwidth Product
10MHz
Number of Channels
2
Number of Circuits
2
Operating Supply Current
8mA
Operating Supply Voltage
15V
Output Current
38mA
Output Current per Channel
38mA
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
9V/µs
Supply Current
16mA
Technology
BIPOLAR
Thickness
1.95mm
Voltage Gain
100dB
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments NE5532PSR Datasheet
Download the complete datasheet for Texas Instruments NE5532PSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

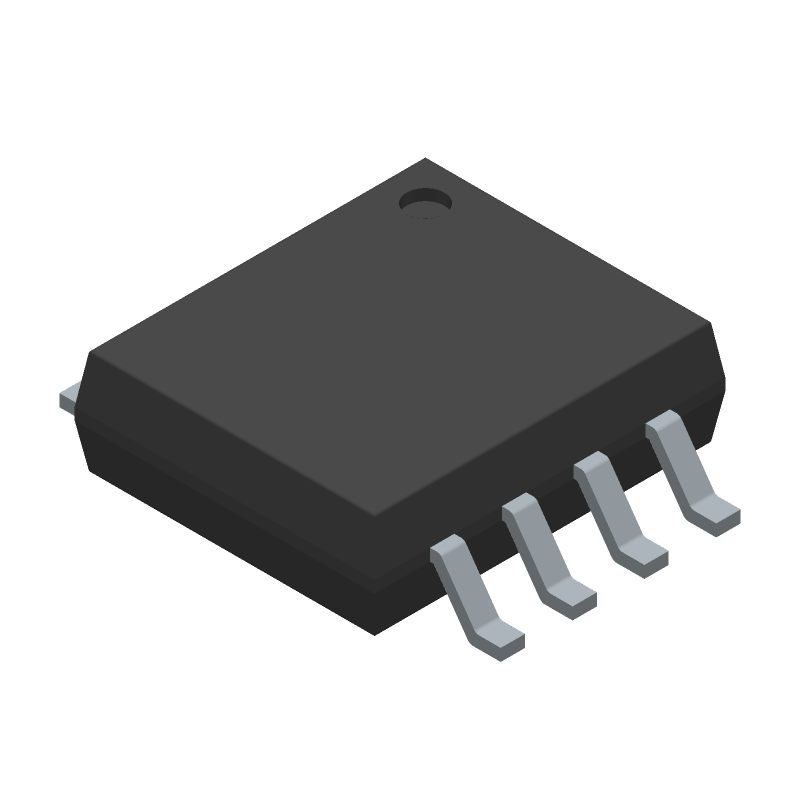

Product Images
