1-Gbps to 4.25-Gbps limiting amplifier with LOS & RSSI, this specialized telecom IC features a 50dB gain and a 25kHz -3dB bandwidth. Operating from a 3V to 3.6V supply, it consumes 35mA typical current. The component is housed in a 16-VQFN EP package, suitable for operation between -40°C and 85°C. It offers a 50MR input resistance and a maximum input voltage of 1.2V.
PackageVQFN EP
Current45mA
Power89mW
Quick Jump:
Technical Specifications
Texas Instruments ONET4201PARGTR technical specifications.
General
| -3db Bandwidth | 25kHz |
| Bandwidth | 25kHz |
| Package/Case | VQFN EP |
| Gain | 50dB |
| Input Resistance | 50MR |
| Lead Free | Lead Free |
| Max Input Voltage | 1.2V |
| Min Input Voltage | 5mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 5 |
| Operating Supply Current | 35mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 89mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ONET4201PA |
| Supply Current | 45mA |
| Weight | 0.000808oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ONET4201PARGTR Datasheet
Download the complete datasheet for Texas Instruments ONET4201PARGTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

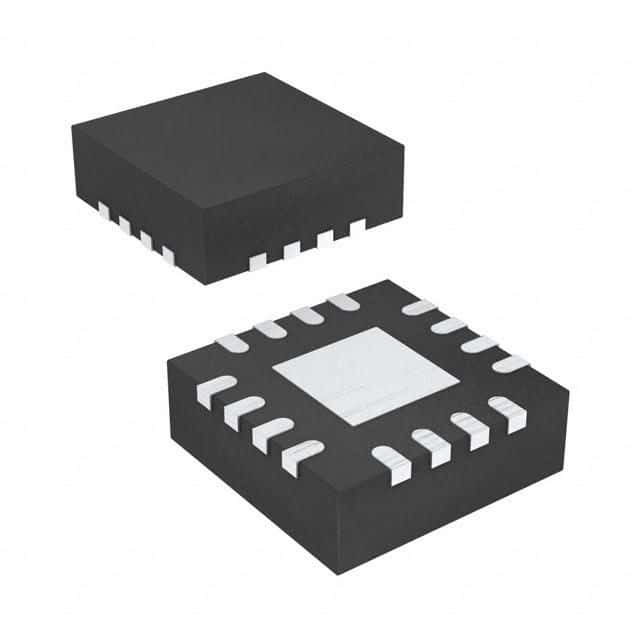

Product Images
