Texas Instruments
ONET4201PARGTRG4
1-Gbps to 4.25-Gbps limiting amplifier with LOS & RSSI 16-VQFN -40 to 85
PackageQFN
Power89mW
Quick Jump:
Technical Specifications
Texas Instruments ONET4201PARGTRG4 technical specifications.
General
-3db Bandwidth
25kHz
Bandwidth
25kHz
Package/Case
QFN
Gain
50dB
Input Resistance
50MR
Lead Free
Lead Free
Max Input Voltage
1.2V
Min Input Voltage
5mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of Channels
1
Number of Circuits
1
Number of Elements
5
Operating Supply Current
35mA
Operating Supply Voltage
3.3V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
89mW
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ONET4201PARGTRG4 Datasheet
Download the complete datasheet for Texas Instruments ONET4201PARGTRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

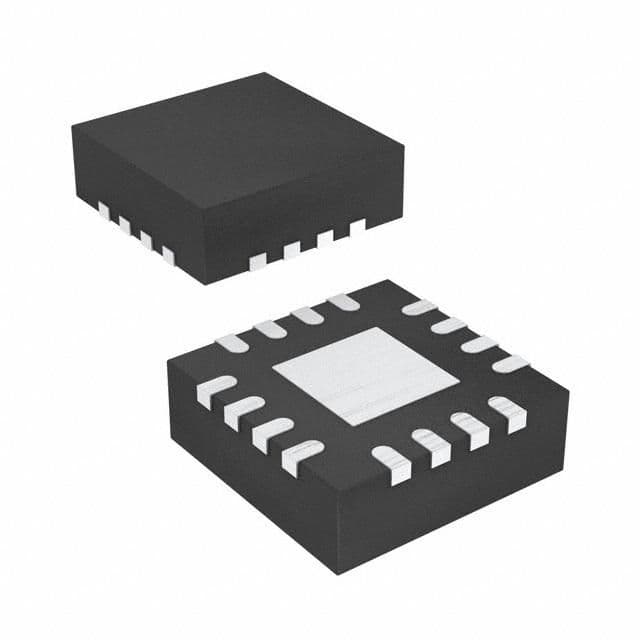

Product Images
