Single operational amplifier featuring a low input offset voltage of 150µV and a 600kHz gain bandwidth product. This general-purpose amplifier offers a high common-mode rejection ratio of 94dB and a voltage gain of 112.04dB. It operates with dual supply voltages ranging from 3V to 18V and has a slew rate of 0.3V/µs. The component is housed in an 8-PDIP package, is RoHS compliant, and operates within a temperature range of 0°C to 70°C.
PackageP
Current5mA
Power4mW
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Texas Instruments OP07DP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Texas Instruments OP07DP technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 600kHz |
| Package/Case | P |
| Common Mode Rejection Ratio | 94dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 600kHz |
| Height | 4.57mm |
| Input Bias Current | 12nA |
| Input Offset Voltage (Vos) | 150uV |
| Lead Free | Lead Free |
| Length | 9.81mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 3V |
| Max I/O Voltage | 150uV |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Nominal Gain Bandwidth Product | 600kHz |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 18V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 4mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.3V/µs |
| Supply Current | 5mA |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 600kHz |
| Voltage Gain | 112.04dB |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OP07DP Datasheet
Download the complete datasheet for Texas Instruments OP07DP to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

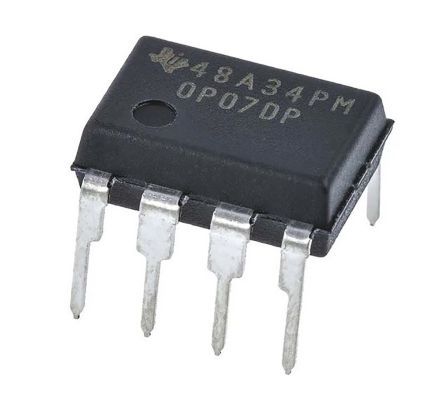

Product Images
