General purpose operational amplifier featuring a 3MHz gain bandwidth product and 1.5V/µs slew rate. This single-channel op amp operates from a 2.7V to 36V supply voltage with a maximum dual supply voltage of 18V. It offers a high common mode rejection ratio of 104dB and power supply rejection ratio of 120dB, with a low input bias current of 15pA and input offset voltage of 250µV. Packaged in a compact SOT-553 (5-SOT-5X3) with dimensions of 1.7mm length, 1.3mm width, and 0.55mm height, this RoHS compliant component is suitable for operation between -40°C and 125°C.
Frequency1MHz
PackageSOT-553
Current475uA
Quick Jump:
Technical Specifications
Texas Instruments OPA171AIDRLT technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
3MHz
Package/Case
SOT-553
Common Mode Rejection Ratio
104dB
Gain Bandwidth Product
3MHz
Height
0.55mm
Input Bias Current
15pA
Input Offset Voltage (Vos)
250uV
Lead Free
Lead Free
Length
1.7mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
1.35V
Max Frequency
1MHz
Max I/O Voltage
1.8mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
2.7V
Nominal Gain Bandwidth Product
3MHz
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
475uA
Operating Supply Voltage
18V
Output Current
25mA
Output Current per Channel
35mA
Package Quantity
250
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
120dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
1.5V/µs
Supply Current
475uA
Unity Gain Bandwidth Product
3MHz
Voltage Gain
130dB
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA171AIDRLT Datasheet
Download the complete datasheet for Texas Instruments OPA171AIDRLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

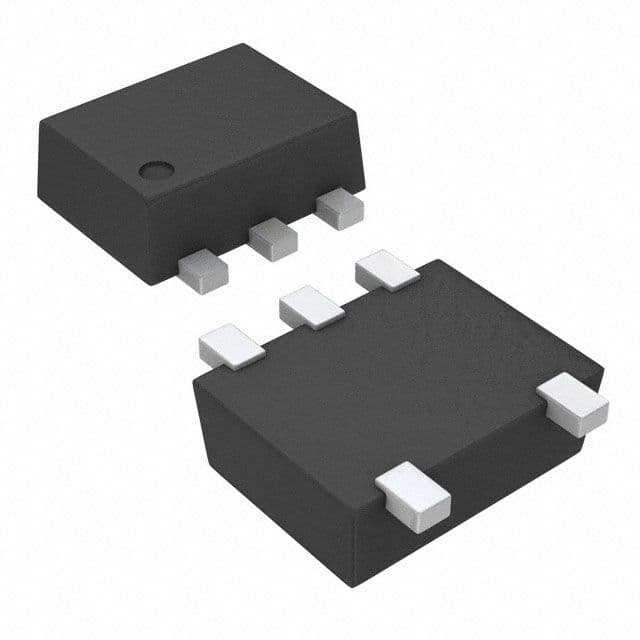

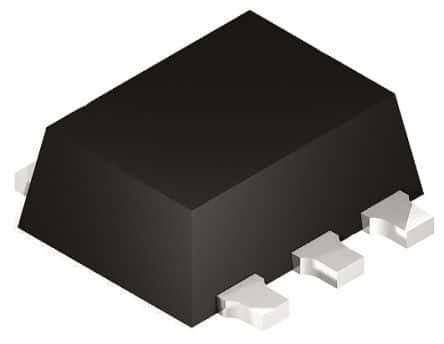

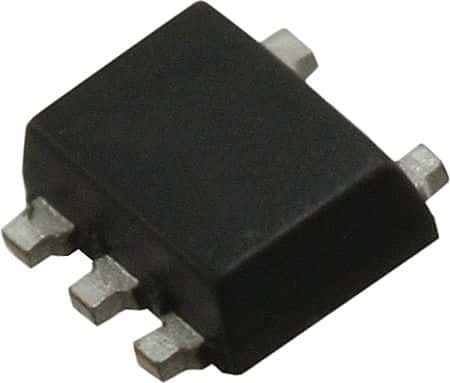

Product Images
