Precision operational amplifier featuring a 600kHz gain bandwidth product and 0.3V/µs slew rate. This single-channel, general-purpose amplifier offers a low input offset voltage of 60µV and 115dB common mode rejection ratio. Designed for dual supply operation from 3V to 18V (max 22V), it consumes 1.3mA operating supply current. The component is housed in an 8-PDIP package, operates from -40°C to 85°C, and is RoHS compliant.
PackageP
Current1.5mA
Quick Jump:
Technical Specifications
Texas Instruments OPA177GP technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
600kHz
Package/Case
P
Common Mode Rejection Ratio
115dB
Dual Supply Voltage
18V
Gain Bandwidth Product
600kHz
Height
4.57mm
Input Bias Current
2.8nA
Input Offset Voltage (Vos)
60uV
Lead Free
Lead Free
Length
9.81mm
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
3V
Max I/O Voltage
60uV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Nominal Gain Bandwidth Product
600kHz
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
1.3mA
Operating Supply Voltage
18V
Package Quantity
50
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
110dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.3V/µs
Supply Current
1.5mA
Technology
BIPOLAR
Voltage Gain
135.56dB
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA177GP Datasheet
Download the complete datasheet for Texas Instruments OPA177GP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

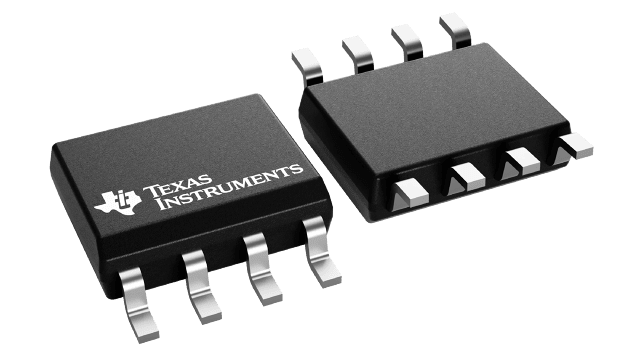

Product Images
