Dual, general-purpose operational amplifier featuring 1MHz bandwidth and 140dB voltage gain. Offers 25µV input offset voltage and 1nA input bias current for high-precision applications. Operates from ±2V to ±18V dual supply voltages with a low 790µA operating supply current. Packaged in an 8-PDIP, this RoHS compliant component delivers 35mA output current per channel.
PackageP
Current1.65mA
Quick Jump:
Technical Specifications
Texas Instruments OPA2277P technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1MHz |
| Package/Case | P |
| Common Mode Rejection Ratio | 130dB |
| Gain Bandwidth Product | 1MHz |
| Input Bias Current | 1nA |
| Input Offset Voltage (Vos) | 25uV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 2V |
| Max I/O Voltage | 25uV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Nominal Gain Bandwidth Product | 1MHz |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 790uA |
| Operating Supply Voltage | 18V |
| Output Current per Channel | 35mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.8V/µs |
| Supply Current | 1.65mA |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 140dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OPA2277P Datasheet
Download the complete datasheet for Texas Instruments OPA2277P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

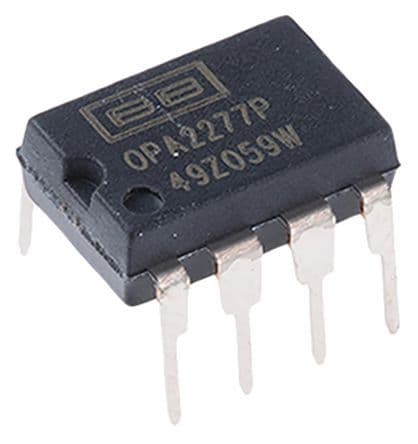

Product Images
