Dual-channel, 1MHz operational amplifier featuring a 0.5V/µs slew rate and 110dB voltage gain. This general-purpose op amp offers a low input bias current of 0.2pA and an input offset voltage of 500µV. Operating from 1.8V to 5.5V, it provides 15mA output current per channel and consumes 50µA operating supply current. Designed for a wide temperature range of -40°C to 125°C, this lead-free, RoHS compliant component is supplied in an 8-SON package on tape and reel.
PackageSON
Quick Jump:
Technical Specifications
Texas Instruments OPA2313IDRGR technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
SON
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
1MHz
Input Bias Current
0.2pA
Input Offset Voltage (Vos)
500uV
Lead Free
Lead Free
Max Dual Supply Voltage
2.75V
Min Dual Supply Voltage
9V
Max I/O Voltage
2.5mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Nominal Gain Bandwidth Product
1MHz
Number of Channels
2
Number of Circuits
2
Operating Supply Current
50uA
Output Current per Channel
15mA
Package Quantity
3000
Packaging
Tape and Reel
RoHS Compliant
Yes
Slew Rate
0.5V/µs
Voltage Gain
110dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA2313IDRGR Datasheet
Download the complete datasheet for Texas Instruments OPA2313IDRGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

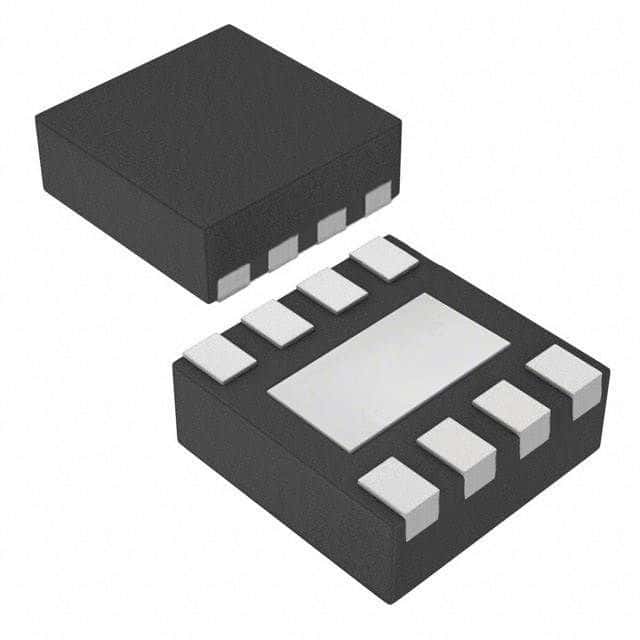

Product Images
