OPA2322AIDRGT
20MHz Op Amp, 2-Ch, 1.8V-5.5V, CMOS, 10pA Ib, 90dB CMRR, 100dB PSRR, SON
Dual-channel, 20MHz operational amplifier featuring low noise and 1.8V rail-to-rail input/output operation. This CMOS amplifier offers a 20MHz gain bandwidth product, 10V/µs slew rate, and 130dB voltage gain. It operates from a minimum supply voltage of 900mV up to 5.5V, with a typical supply current of 1.5mA. The component boasts a 90dB CMRR and 100dB PSRR, with an input bias current of 10pA and an input offset voltage of 2mV. Packaged in an 8-SON (3.1mm x 3.1mm x 0.75mm), it is RoHS compliant and suitable for operation between -40°C and 125°C.
PackageSON
Current1.75mA
Quick Jump:
Technical Specifications
Texas Instruments OPA2322AIDRGT technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
20MHz
Package/Case
SON
Common Mode Rejection Ratio
90dB
Gain Bandwidth Product
20MHz
Height
0.75mm
Input Bias Current
10pA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Length
3.1mm
Max Dual Supply Voltage
2.75V
Min Dual Supply Voltage
900mV
Max I/O Voltage
2mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Nominal Gain Bandwidth Product
20MHz
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1.5mA
Output Current
65mA
Output Current per Channel
65mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
100dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
10V/µs
Supply Current
1.75mA
Technology
CMOS
Unity Gain Bandwidth Product
20MHz
Voltage Gain
130dB
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA2322AIDRGT Datasheet
Download the complete datasheet for Texas Instruments OPA2322AIDRGT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

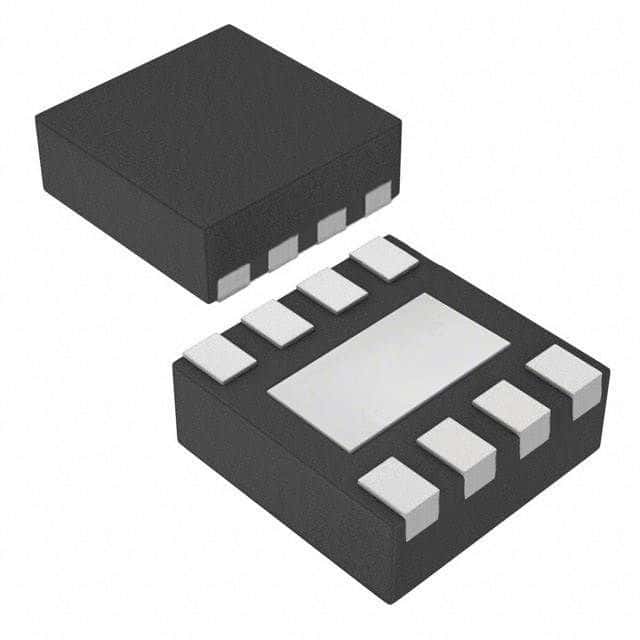

Product Images
