Dual-channel, general-purpose operational amplifier featuring a 100kHz bandwidth and 100kHz gain bandwidth product. This CMOS amplifier operates from a 2.3V to 5.5V supply, consuming a low 20µA operating supply current. Key specifications include a 125µV input offset voltage, 10pA input bias current, 80dB CMRR, and 92.04dB PSRR. Delivered in a VSSOP package, this RoHS compliant component offers 5mA output current per channel and a 0.03V/µs slew rate.
PackageVSSOP
Current64uA
Quick Jump:
Technical Specifications
Texas Instruments OPA2336E/250 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
100kHz
Package/Case
VSSOP
Common Mode Rejection Ratio
80dB
Gain Bandwidth Product
100kHz
Input Bias Current
10pA
Input Offset Voltage (Vos)
125uV
Lead Free
Lead Free
Max I/O Voltage
125uV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
20uA
Output Current per Channel
5mA
Package Quantity
250
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
92.04dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MicroAmplifier™
Slew Rate
0.03V/µs
Supply Current
64uA
Technology
CMOS
Unity Gain Bandwidth Product
100kHz
Voltage Gain
115dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA2336E/250 Datasheet
Download the complete datasheet for Texas Instruments OPA2336E/250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

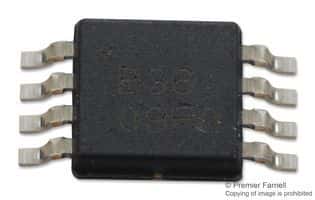

Product Images
