Dual, micropower, rail-to-rail operational amplifier featuring a 350kHz gain bandwidth product and 0.17V/µs slew rate. This CMOS amplifier offers a wide operating temperature range of -55°C to 125°C, with supply voltages from 2.5V to 5.5V. Key specifications include 10pA input bias current, 6mV input offset voltage, and 20µA operating supply current. Delivered in a tape and reel package, this RoHS compliant component provides 115dB voltage gain.
PackageSSOP
Current20uA
Quick Jump:
Technical Specifications
Texas Instruments OPA2347EA/250G4 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
350kHz
Package/Case
SSOP
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
350kHz
Input Bias Current
10pA
Input Offset Voltage (Vos)
6mV
Lead Free
Lead Free
Max I/O Voltage
6mV
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Nominal Gain Bandwidth Product
350kHz
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
20uA
Output Current
17mA
Output Current per Channel
17mA
Package Quantity
250
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
84.44dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.17V/µs
Supply Current
20uA
Technology
CMOS
Unity Gain Bandwidth Product
350kHz
Voltage Gain
115dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA2347EA/250G4 Datasheet
Download the complete datasheet for Texas Instruments OPA2347EA/250G4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

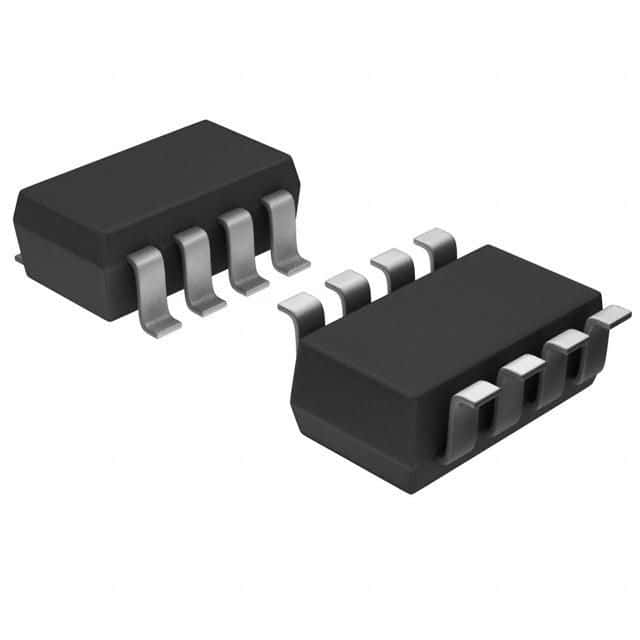

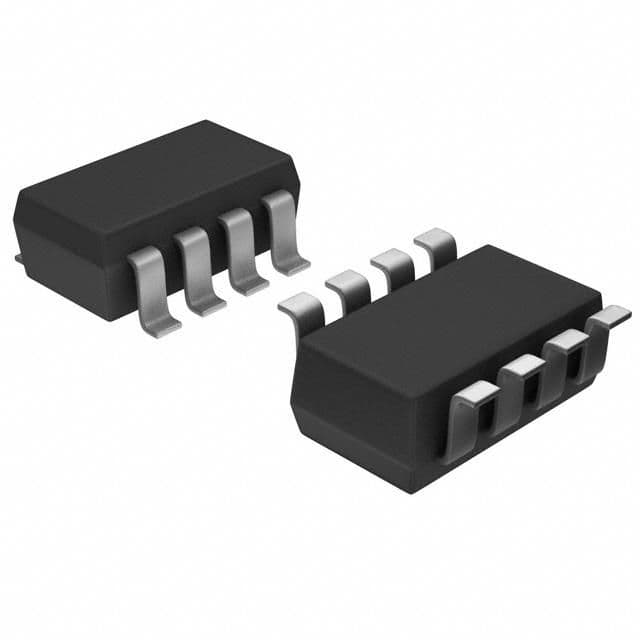

Product Images
