Dual operational amplifier featuring a 350kHz bandwidth and 0.17V/µs slew rate. This CMOS amplifier offers a 2.5V to 5.5V operating supply range with a low 20µA supply current. It boasts a 115dB voltage gain, 54dB CMRR, and 84.44dB PSRR, with a 10pA input bias current and 6mV input offset voltage. Designed for surface mount applications, it operates from -55°C to 125°C.
PackageSOIC
Current20uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments OPA2347YEDT technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
350kHz
Package/Case
SOIC
Common Mode Rejection Ratio
54dB
Gain Bandwidth Product
350kHz
Input Bias Current
10pA
Input Offset Voltage (Vos)
6mV
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
20uA
Output Current
17mA
Output Current per Channel
17mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
84.44dB
RoHS Compliant
Yes
Slew Rate
0.17V/µs
Supply Current
20uA
Technology
CMOS
Unity Gain Bandwidth Product
350kHz
Voltage Gain
115dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA2347YEDT Datasheet
Download the complete datasheet for Texas Instruments OPA2347YEDT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

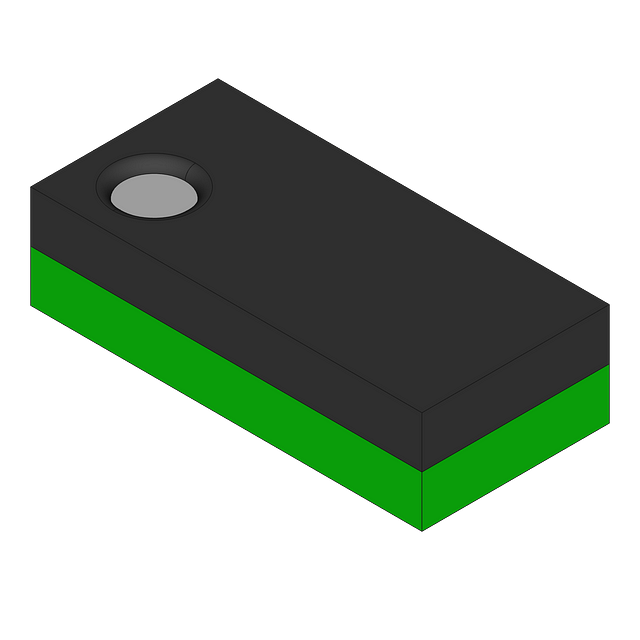

Product Images
