Dual, single-supply, rail-to-rail operational amplifier featuring a 38MHz gain bandwidth product and 22V/µs slew rate. This general-purpose amplifier offers low noise performance with an input bias current of 10pA and an input offset voltage of 500µV. Operating from 2.7V to 5.5V, it delivers 40mA output current per channel and boasts a 122dB voltage gain. Packaged in an 8-VSSOP with dimensions of 3mm x 3mm x 0.97mm, this RoHS compliant component operates across a temperature range of -40°C to 85°C.
PackageVSSOP
Current15mA
Quick Jump:
Technical Specifications
Texas Instruments OPA2350EA/250 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
38MHz
Package/Case
VSSOP
Common Mode Rejection Ratio
74dB
Gain Bandwidth Product
38MHz
Height
0.97mm
Input Bias Current
10pA
Input Offset Voltage (Vos)
500uV
Lead Free
Lead Free
Length
3mm
Max I/O Voltage
1mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
5.2mA
Output Current per Channel
40mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
87.96dB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MicroAmplifier™
Slew Rate
22V/µs
Supply Current
15mA
Technology
CMOS
Unity Gain Bandwidth Product
38MHz
Voltage Gain
122dB
Weight
0.000917oz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA2350EA/250 Datasheet
Download the complete datasheet for Texas Instruments OPA2350EA/250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

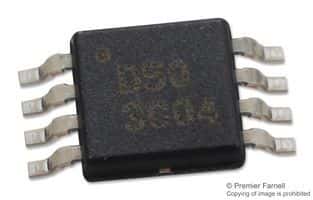

Product Images
