Dual-channel, general-purpose operational amplifier with a 7MHz bandwidth and 74dB common mode rejection ratio. Features Rail-to-Rail Input/Output (RRIO) operation, a 5V/µs slew rate, and a 1.1mA operating supply current. Designed for 1.8V to 5.5V supply voltages, this CMOS amplifier offers a 100dB voltage gain and 85mA output current per channel. Packaged in an 8-VSSOP, it operates across a -40°C to 125°C temperature range.
PackageVSSOP
Current2.8mA
Quick Jump:
Technical Specifications
Texas Instruments OPA2364AIDGKT technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
7MHz
Package/Case
VSSOP
Common Mode Rejection Ratio
74dB
Gain Bandwidth Product
7MHz
Height
0.97mm
Input Bias Current
10pA
Input Offset Voltage (Vos)
2.5mV
Lead Free
Lead Free
Length
3mm
Max Dual Supply Voltage
2.75V
Min Dual Supply Voltage
900mV
Max I/O Voltage
2.5mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1.1mA
Operating Supply Voltage
2.75V
Output Current per Channel
85mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
81.94dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
5V/µs
Supply Current
2.8mA
Technology
CMOS
Unity Gain Bandwidth Product
7MHz
Voltage Gain
100dB
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA2364AIDGKT Datasheet
Download the complete datasheet for Texas Instruments OPA2364AIDGKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

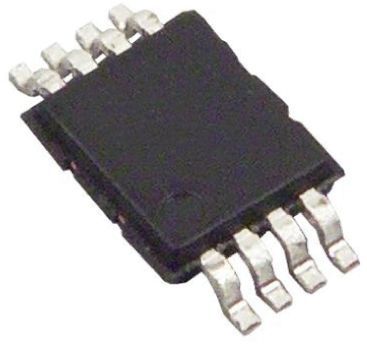

Product Images
