Dual, wideband operational amplifier featuring a 600MHz -3dB bandwidth and 260MHz gain bandwidth product. Delivers high output current of 700mA per channel with a 3000V/µs slew rate. Operates from a dual supply voltage range of 3.5V to 6.5V, with a maximum single supply of 13V. Packaged in a compact 16-VQFN with dimensions of 4.15mm x 4.15mm x 0.95mm, suitable for operation between -40°C and 85°C.
Frequency5MHz
PackageVQFN
Current29mA
Quick Jump:
Technical Specifications
Texas Instruments OPA2673IRGVT technical specifications.
General
| -3db Bandwidth | 600MHz |
| Bandwidth | 600MHz |
| Package/Case | VQFN |
| Common Mode Rejection Ratio | 50dB |
| Dual Supply Voltage | 6V |
| Gain Bandwidth Product | 260MHz |
| Height | 0.95mm |
| Input Bias Current | 25uA |
| Input Offset Voltage (Vos) | 7mV |
| Lead Free | Lead Free |
| Length | 4.15mm |
| Max Dual Supply Voltage | 6.5V |
| Min Dual Supply Voltage | 3.5V |
| Max Frequency | 5MHz |
| Max I/O Voltage | 7mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 13V |
| Min Supply Voltage | 7V |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 32mA |
| Output Current per Channel | 700mA |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 49dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | OPA2673 |
| Slew Rate | 3000V/µs |
| Supply Current | 29mA |
| Voltage Gain | 2dB |
| Width | 4.15mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OPA2673IRGVT Datasheet
Download the complete datasheet for Texas Instruments OPA2673IRGVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

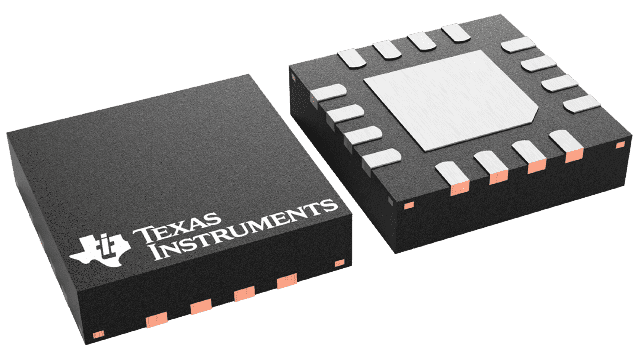

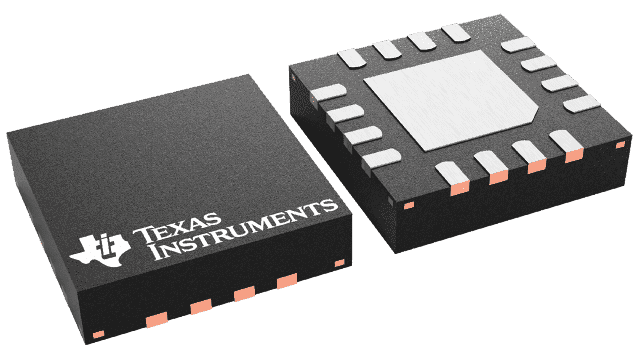

Product Images
