Dual, low power, current feedback operational amplifier featuring a 250MHz -3dB bandwidth and 1.9GHz gain bandwidth product. This 2-channel IC offers a high slew rate of 820V/µs and 160mA output current per channel. Operating from a minimum dual supply voltage of 2.5V up to 6V, or a single supply from 5V to 12V, it provides 52dB common mode rejection and 58dB power supply rejection. Packaged in an 8-SOT-23, this lead-free, RoHS compliant component operates across a temperature range of -40°C to 125°C.
PackageSOT-23-8
Current3.6mA
Quick Jump:
Technical Specifications
Texas Instruments OPA2684IDCNT technical specifications.
General
| -3db Bandwidth | 250MHz |
| Bandwidth | 250MHz |
| Package/Case | SOT-23-8 |
| Common Mode Rejection Ratio | 52dB |
| Dual Supply Voltage | 5V |
| Gain Bandwidth Product | 1.9GHz |
| Input Bias Current | 13uA |
| Input Offset Voltage (Vos) | 1.5mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 6V |
| Min Dual Supply Voltage | 2.5V |
| Max I/O Voltage | 3.5mV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 5V |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 1.7mA |
| Output Current per Channel | 160mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 58dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Settling Time | 11ns |
| Slew Rate | 820V/µs |
| Supply Current | 3.6mA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OPA2684IDCNT Datasheet
Download the complete datasheet for Texas Instruments OPA2684IDCNT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

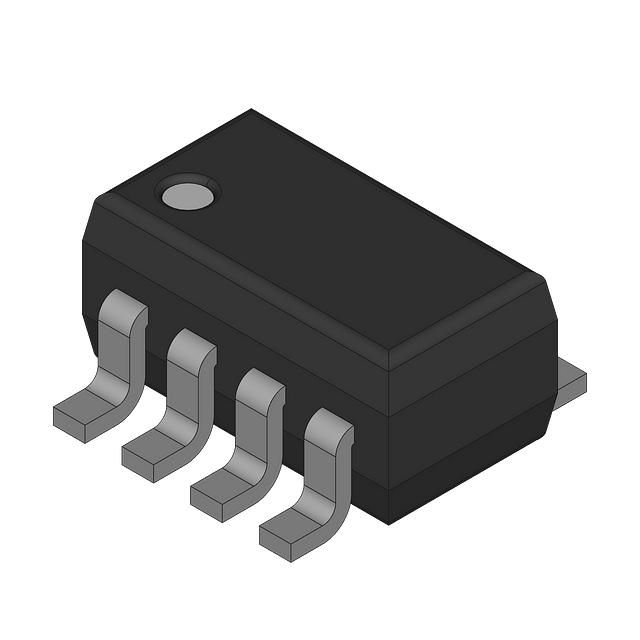

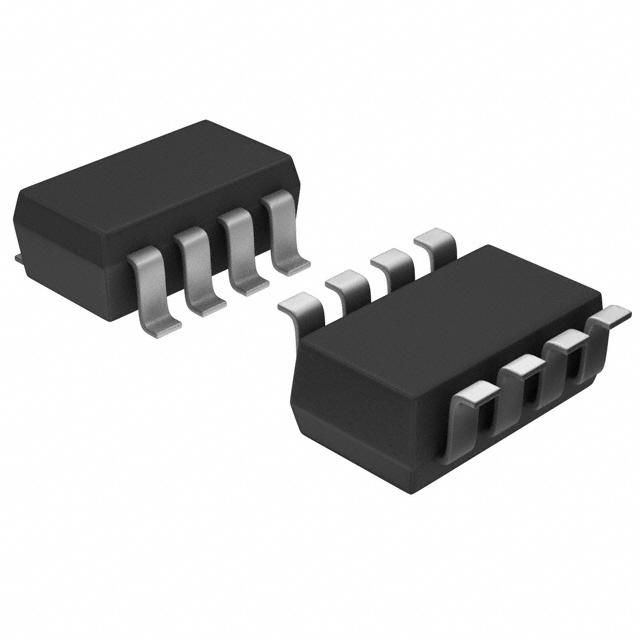

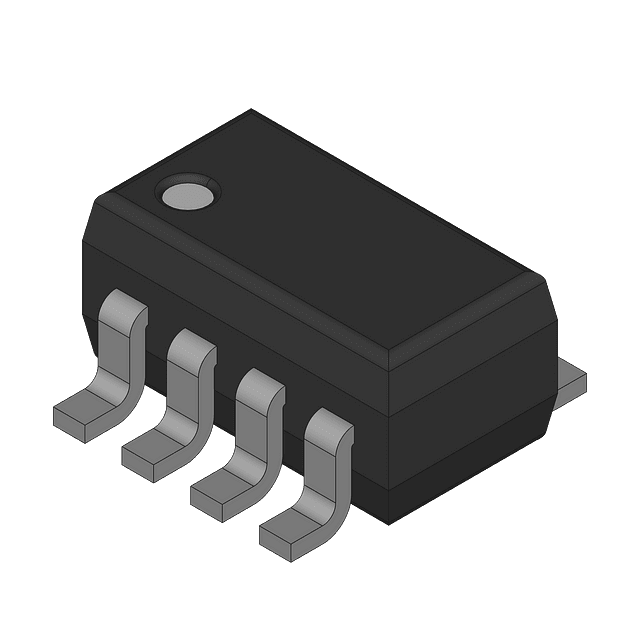

Product Images
