Dual operational amplifier featuring a 1MHz gain bandwidth product and 0.8V/µs slew rate. This bipolar IC offers a high common mode rejection ratio of 130dB and a voltage gain of 140dB. Designed for general-purpose applications, it operates from a 2V to 18V dual supply voltage with a typical supply current of 790µA. The component boasts a low input offset voltage of 20µV and an input bias current of 1nA, housed in a lead-free, 8-SOIC package suitable for surface mounting.
PackageD
Current825uA
Quick Jump:
Technical Specifications
Texas Instruments OPA277U technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
D
Common Mode Rejection Ratio
130dB
Gain Bandwidth Product
1MHz
Input Bias Current
1nA
Input Offset Voltage (Vos)
20uV
JESD-30 Code
R-PDSO-G8
Lead Free
Lead Free
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2V
Max I/O Voltage
20uV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Moisture Sensitivity Level
3
Nominal Gain Bandwidth Product
1MHz
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Functions
1
Operating Supply Current
790uA
Operating Supply Voltage
18V
Output Current per Channel
35mA
Package Body Material
Plastic
Package Quantity
75
Package Shape
Rectangular
Packaging
Rail/Tube
Peak Reflow Temperature (Cel)
260°C
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.8V/µs
Supply Current
825uA
Surface Mount
Yes
Technology
BIPOLAR
Temperature Grade
INDUSTRIAL
Terminal Finish
Gold
Terminal Form
Gull Wing
Terminal Position
DUAL
Time @ Peak Reflow Temperature-Max (s)
30s
Unity Gain Bandwidth Product
1MHz
Voltage Gain
140dB
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA277U Datasheet
Download the complete datasheet for Texas Instruments OPA277U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

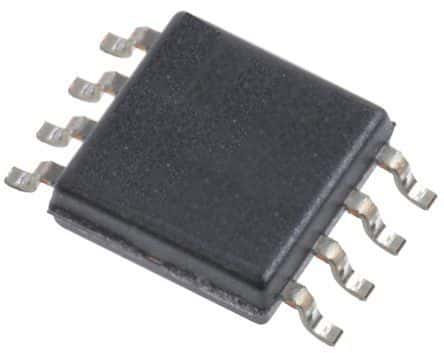

Product Images
