Single-supply, rail-to-rail operational amplifier featuring a 38MHz gain bandwidth product and 22V/µs slew rate. This CMOS amplifier offers a low input bias current of 10pA and a 500µV input offset voltage. Operating from 2.7V to 5.5V supply voltages, it delivers 40mA output current per channel with a quiescent current of 7.5mA. The amplifier is housed in an 8-VSSOP package, measuring 3mm x 3mm x 0.97mm, and operates across a temperature range of -40°C to 85°C.
PackageVSSOP
Current7.5mA
Quick Jump:
Technical Specifications
Texas Instruments OPA350EA/250 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
38MHz
Package/Case
VSSOP
Common Mode Rejection Ratio
66dB
Gain Bandwidth Product
38MHz
Height
0.97mm
Input Bias Current
10pA
Input Offset Voltage (Vos)
500uV
Lead Free
Lead Free
Length
3mm
Max I/O Voltage
1mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
40mA
Package Quantity
250
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
87.96dB
Quiescent Current
7.5A
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
OPA350
Slew Rate
22V/µs
Supply Current
7.5mA
Technology
CMOS
Unity Gain Bandwidth Product
38MHz
Voltage Gain
122dB
Weight
0.000917oz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA350EA/250 Datasheet
Download the complete datasheet for Texas Instruments OPA350EA/250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

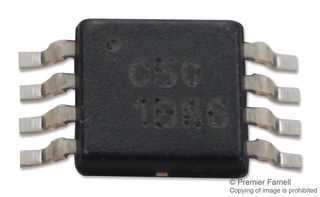

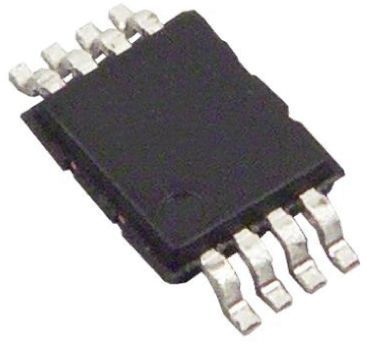

Product Images
