Single-supply, rail-to-rail operational amplifier featuring 38MHz bandwidth and 22V/µs slew rate. This general-purpose CMOS amplifier offers 10pA input bias current and 500µV input offset voltage. Operating from 2.7V to 5.5V supply, it provides 40mA output current per channel. High performance is further indicated by 66dB CMRR and 87.96dB PSRR. Packaged in 8-PDIP, this RoHS compliant component operates from -40°C to 85°C.
PackageP
Current7.5mA
Quick Jump:
Technical Specifications
Texas Instruments OPA350PA technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
38MHz
Package/Case
P
Common Mode Rejection Ratio
66dB
Gain Bandwidth Product
38MHz
Input Bias Current
10pA
Input Offset Voltage (Vos)
500uV
Lead Free
Lead Free
Max I/O Voltage
1mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
5.2mA
Output Current per Channel
40mA
Package Quantity
50
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
87.96dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MicroAmplifier™
Slew Rate
22V/µs
Supply Current
7.5mA
Technology
CMOS
Thickness
3.9mm
Unity Gain Bandwidth Product
38MHz
Voltage Gain
122dB
Weight
0.018455oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA350PA Datasheet
Download the complete datasheet for Texas Instruments OPA350PA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

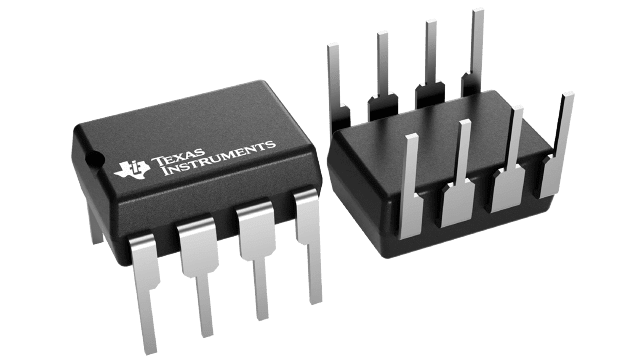

Product Images
