Triple operational amplifier featuring a 250MHz -3dB bandwidth and 1.9GHz gain bandwidth product. This current feedback amplifier offers a 750V/µs slew rate and 160mA output current per channel. Designed for dual supply operation from 2.5V to 6V, with a maximum single supply of 12V. The component boasts a 51dB CMRR and 65dB PSRR, with an input bias current of 19.5µA and input offset voltage of 1.5mV. Packaged in a 16-SSOP, this RoHS compliant device operates across a temperature range of -40°C to 85°C.
PackageSSOP
Current5.4mA
Quick Jump:
Technical Specifications
Texas Instruments OPA3684IDBQT technical specifications.
General
-3db Bandwidth
250MHz
Bandwidth
250MHz
Package/Case
SSOP
Common Mode Rejection Ratio
51dB
Dual Supply Voltage
5V
Gain Bandwidth Product
1.9GHz
Input Bias Current
19.5uA
Input Offset Voltage (Vos)
1.5mV
Lead Free
Lead Free
Max Dual Supply Voltage
6V
Min Dual Supply Voltage
2.5V
Max I/O Voltage
3.5mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
12V
Min Supply Voltage
5V
Number of Channels
3
Number of Circuits
3
Number of Elements
3
Operating Supply Current
1.7mA
Output Current per Channel
160mA
Package Quantity
250
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
65dB
Radiation Hardening
No
RoHS Compliant
Yes
Series
OPA3684
Settling Time
11ns
Slew Rate
750V/µs
Supply Current
5.4mA
Weight
0.002603oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA3684IDBQT Datasheet
Download the complete datasheet for Texas Instruments OPA3684IDBQT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

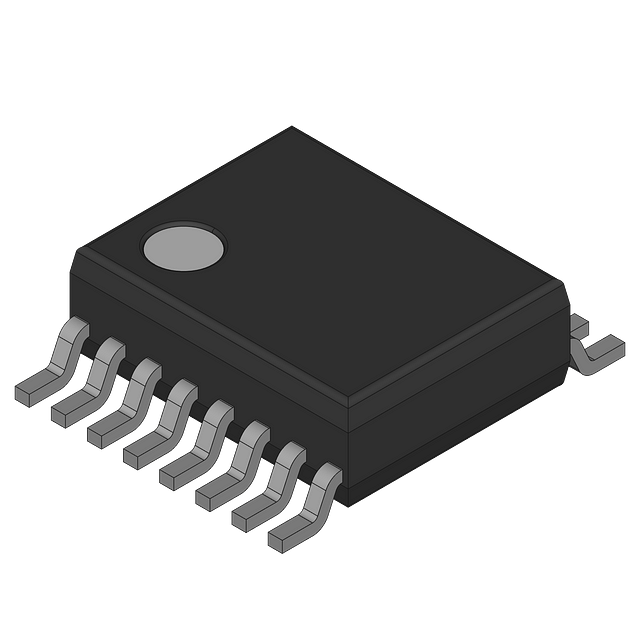

Product Images
