Quad high-speed precision operational amplifier featuring a BIFET technology for enhanced performance. This general-purpose amplifier boasts a 6.4MHz bandwidth and a 35V/µs slew rate, ideal for demanding applications. With four independent amplifiers per package, it offers a 100dB voltage gain and a 12pA input bias current, ensuring high accuracy. Operating from ±2.5V to ±9V dual supplies, this RoHS compliant component is housed in a 14-PDIP package.
PackageN
Current2.5mA
Quick Jump:
Technical Specifications
Texas Instruments OPA404KPG4 technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 6.4MHz |
| Package/Case | N |
| Common Mode Rejection Ratio | 84dB |
| Gain Bandwidth Product | 6.4MHz |
| Input Bias Current | 12pA |
| Input Offset Voltage (Vos) | 750uV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 5V |
| Max I/O Voltage | 2.5mV |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Nominal Gain Bandwidth Product | 6.4MHz |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Operating Supply Current | 9mA |
| Operating Supply Voltage | 18V |
| Output Current | 9mA |
| Output Current per Channel | 10mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Difet® |
| Slew Rate | 35V/µs |
| Supply Current | 2.5mA |
| Technology | BIFET |
| Voltage Gain | 100dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OPA404KPG4 Datasheet
Download the complete datasheet for Texas Instruments OPA404KPG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

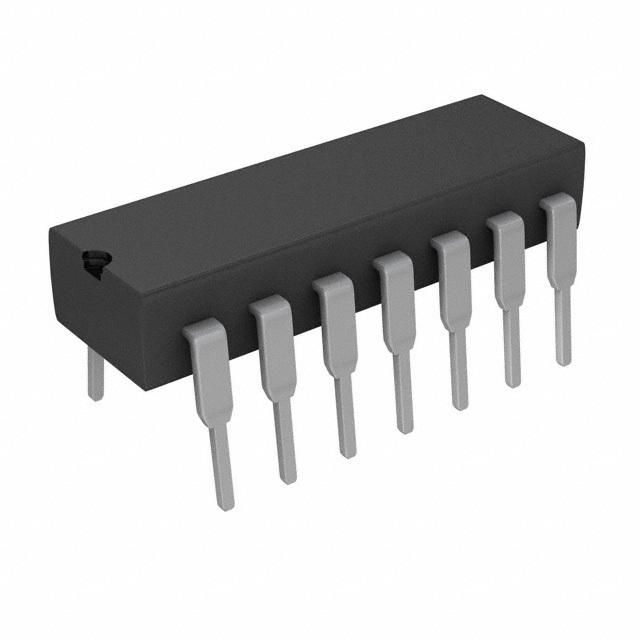

Product Images
