Quad JFET operational amplifier featuring a 4MHz gain bandwidth product and 10V/µs slew rate. This general-purpose amplifier offers a low input bias current of 50pA and a 70dB common mode rejection ratio. Designed for dual supply operation from ±4.5V to ±18V, it provides 25mA output current per channel. The component is RoHS compliant and operates across a temperature range of -40°C to 85°C, housed in a 14-SOIC package.
PackageD
Current8mA
Quick Jump:
Technical Specifications
Texas Instruments OPA4131NJ technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
4MHz
Package/Case
D
Common Mode Rejection Ratio
70dB
Dual Supply Voltage
15V
Gain Bandwidth Product
4MHz
Input Bias Current
50pA
Input Offset Voltage (Vos)
1.5mV
Lead Free
Lead Free
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
4.5V
Max I/O Voltage
1.5mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Nominal Gain Bandwidth Product
4MHz
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
1.5mA
Operating Supply Voltage
18V
Output Current per Channel
25mA
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
10V/µs
Supply Current
8mA
Technology
JFET
Unity Gain Bandwidth Product
4MHz
Voltage Gain
110dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA4131NJ Datasheet
Download the complete datasheet for Texas Instruments OPA4131NJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

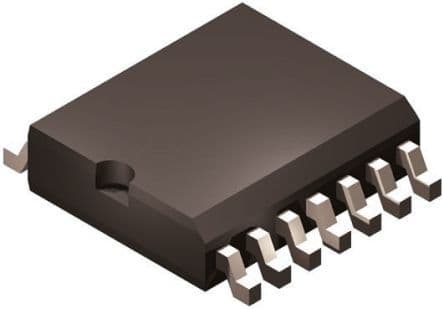

Product Images
