Quad JFET operational amplifier featuring a 4MHz gain bandwidth product and 10V/µs slew rate. This general-purpose amplifier offers a low input bias current of 50pA and an input offset voltage of 200µV. Designed for dual supply operation from 4.5V to 18V, it provides 25mA output current per channel and a voltage gain of 110dB. The device operates across a temperature range of -40°C to 85°C and is RoHS compliant.
PackageN
Current7mA
Quick Jump:
Technical Specifications
Texas Instruments OPA4131PAG4 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
4MHz
Package/Case
N
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
4MHz
Input Bias Current
50pA
Input Offset Voltage (Vos)
200uV
Lead Free
Lead Free
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
4.5V
Max I/O Voltage
1mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Nominal Gain Bandwidth Product
4MHz
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Operating Supply Current
1.5mA
Operating Supply Voltage
18V
Output Current per Channel
25mA
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
10V/µs
Supply Current
7mA
Technology
JFET
Voltage Gain
110dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA4131PAG4 Datasheet
Download the complete datasheet for Texas Instruments OPA4131PAG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

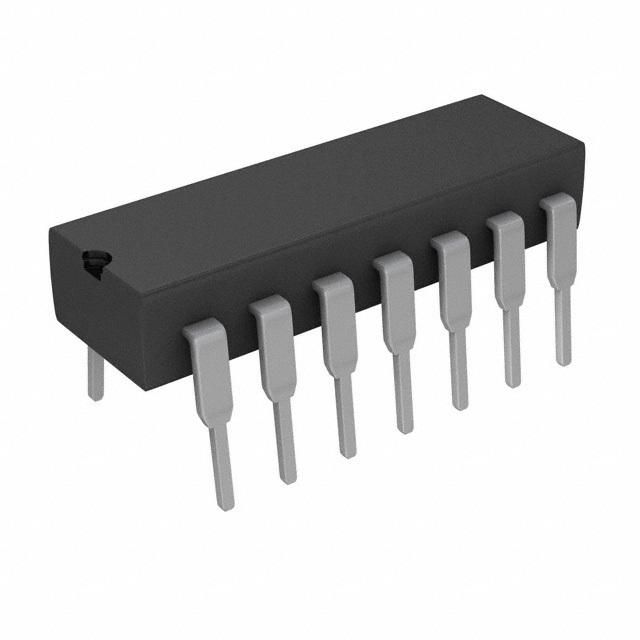

Product Images
