Quad-channel operational amplifier featuring a 1MHz gain bandwidth product and 3.5V/µs slew rate. This general-purpose op amp operates from a minimum dual supply voltage of 2.25V up to a maximum of 18V, with a maximum single supply voltage of 36V. It offers a high common mode rejection ratio of 74dB and a voltage gain of 94dB, with low input bias current of 100pA. The device is housed in a 14-pin PDIP package, is RoHS compliant, and operates across a temperature range of -40°C to 85°C.
PackageN
Current220uA
Quick Jump:
Technical Specifications
Texas Instruments OPA4137P technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
N
Common Mode Rejection Ratio
74dB
Gain Bandwidth Product
1MHz
Height
5.08mm
Input Bias Current
100pA
Input Offset Voltage (Vos)
1.5mV
Lead Free
Lead Free
Length
19.3mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.25V
Max I/O Voltage
3mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
4.5V
Nominal Gain Bandwidth Product
1MHz
Number of Channels
4
Number of Circuits
4
Operating Supply Current
220uA
Operating Supply Voltage
18V
Output Current
60mA
Output Current per Channel
60mA
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
MicroAmplifier™
Slew Rate
3.5V/µs
Supply Current
220uA
Technology
BIFET
Thickness
3.9mm
Voltage Gain
94dB
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA4137P Datasheet
Download the complete datasheet for Texas Instruments OPA4137P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

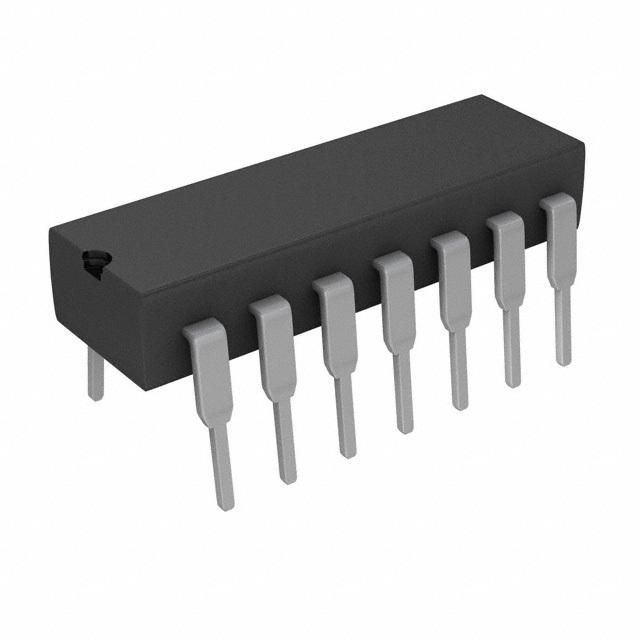

Product Images
