Quad high precision, low noise operational amplifier featuring 8MHz bandwidth and 2.3V/µs slew rate. Offers 160dB voltage gain, 120dB CMRR, and 126.02dB PSRR. Operates from 2.5V to 18V dual supply with 3.8mA supply current. Designed with BIPOLAR technology, this general-purpose amplifier boasts 200µV input offset voltage and 10nA input bias current. Suitable for operation across a -40°C to 85°C temperature range.
PackageN
Current3.8mA
Quick Jump:
Technical Specifications
Texas Instruments OPA4227PAG4 technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 8MHz |
| Package/Case | N |
| Common Mode Rejection Ratio | 120dB |
| Gain Bandwidth Product | 8MHz |
| Input Bias Current | 10nA |
| Input Offset Voltage (Vos) | 200uV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 2.5V |
| Max I/O Voltage | 200uV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Nominal Gain Bandwidth Product | 8MHz |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 3.7mA |
| Operating Supply Voltage | 18V |
| Output Current | 45mA |
| Output Current per Channel | 45mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 126.02dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 2.3V/µs |
| Supply Current | 3.8mA |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 8MHz |
| Voltage Gain | 160dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OPA4227PAG4 Datasheet
Download the complete datasheet for Texas Instruments OPA4227PAG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

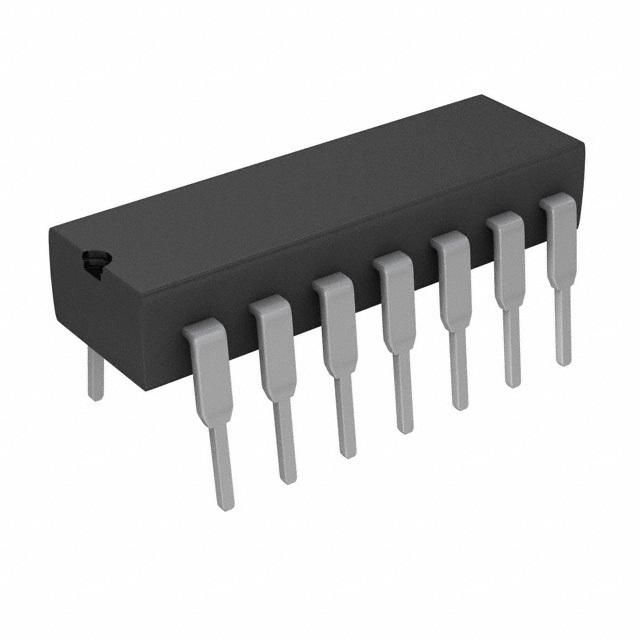

Product Images
