Quad high precision operational amplifier featuring a 33MHz bandwidth and 11V/µs slew rate. This general-purpose amplifier offers a 200µV input offset voltage, 10nA input bias current, and 120dB common mode rejection ratio. Designed for dual supply operation from 2.5V to 18V, it provides 45mA output current per channel. The component operates across a wide temperature range of -55°C to 125°C and is housed in a 14-SOIC package.
PackageD
Current3.8mA
Quick Jump:
Technical Specifications
Texas Instruments OPA4228UA technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 33MHz |
| Package/Case | D |
| Common Mode Rejection Ratio | 120dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 33MHz |
| Height | 1.58mm |
| Input Bias Current | 10nA |
| Input Offset Voltage (Vos) | 200uV |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 2.5V |
| Max I/O Voltage | 200uV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Nominal Gain Bandwidth Product | 33MHz |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 3.7mA |
| Operating Supply Voltage | 18V |
| Output Current | 45mA |
| Output Current per Channel | 45mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 126.02dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 11V/µs |
| Supply Current | 3.8mA |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 8MHz |
| Voltage Gain | 160dB |
| Width | 3.91mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OPA4228UA Datasheet
Download the complete datasheet for Texas Instruments OPA4228UA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

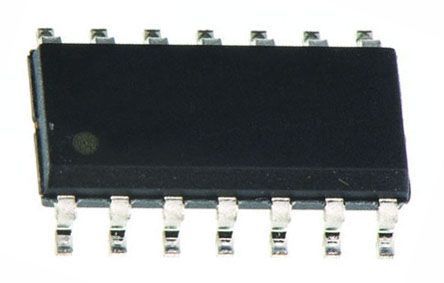

Product Images
