Quad operational amplifier featuring 1MHz bandwidth and 140dB voltage gain. This precision amplifier offers low 2.8nA input bias current and 20µV input offset voltage. Operating from ±2V to ±18V dual supply, it consumes a low 790µA supply current. The 14-PDIP package houses four independent amplifier circuits, suitable for general-purpose applications.
PackageN
Current825uA
Quick Jump:
Technical Specifications
Texas Instruments OPA4277PA technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1MHz |
| Package/Case | N |
| Common Mode Rejection Ratio | 115dB |
| Gain Bandwidth Product | 1MHz |
| Input Bias Current | 2.8nA |
| Input Offset Voltage (Vos) | 20uV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 2V |
| Max I/O Voltage | 50uV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Nominal Gain Bandwidth Product | 1MHz |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 790uA |
| Operating Supply Voltage | 18V |
| Output Current | 35mA |
| Output Current per Channel | 35mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.8V/µs |
| Supply Current | 825uA |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 140dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OPA4277PA Datasheet
Download the complete datasheet for Texas Instruments OPA4277PA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

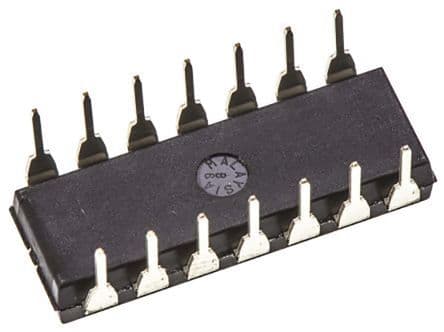

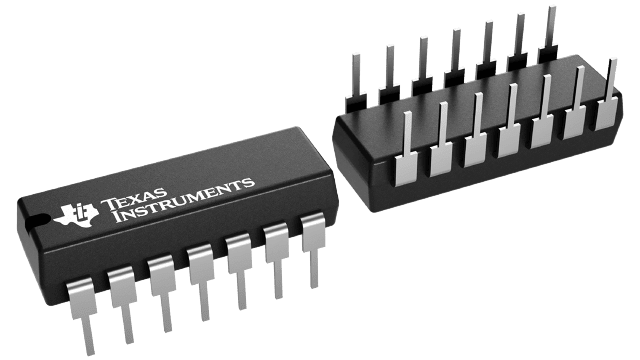

Product Images
