Quad operational amplifier featuring 1MHz bandwidth and 1MHz gain bandwidth product. This precision amplifier offers a low input bias current of 2.8nA and an input offset voltage of 20µV. Designed for general-purpose applications, it operates with dual supply voltages from 2V to 18V and consumes a nominal supply current of 790µA. The component is housed in a 14-SOIC package with gull wing terminals, suitable for surface mounting.
PackageD
Current825uA
Quick Jump:
Technical Specifications
Texas Instruments OPA4277UA technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1MHz |
| Package/Case | D |
| Common Mode Rejection Ratio | 115dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 1MHz |
| Height | 1.58mm |
| Input Bias Current | 2.8nA |
| Input Offset Voltage (Vos) | 20uV |
| JESD-30 Code | R-PDSO-G14 |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 2V |
| Max I/O Voltage | 50uV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 2V |
| Moisture Sensitivity Level | 3 |
| Nominal Gain Bandwidth Product | 1MHz |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Functions | 4 |
| Operating Supply Current | 790uA |
| Output Current | 35mA |
| Output Current per Channel | 35mA |
| Package Body Material | Plastic |
| Package Quantity | 50 |
| Package Shape | Rectangular |
| Packaging | Rail/Tube |
| Peak Reflow Temperature (Cel) | 260°C |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.8V/µs |
| Supply Current | 825uA |
| Surface Mount | Yes |
| Technology | BIPOLAR |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Gold |
| Terminal Form | Gull Wing |
| Terminal Position | DUAL |
| Termination | SMD/SMT |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 140dB |
| Width | 3.91mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OPA4277UA Datasheet
Download the complete datasheet for Texas Instruments OPA4277UA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

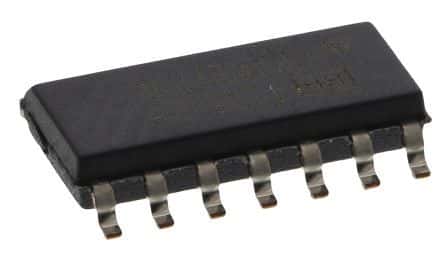

Product Images
