Quad, single-supply, rail-to-rail operational amplifier featuring a 5.5MHz gain bandwidth product and 6V/µs slew rate. This general-purpose amplifier offers 4 channels with a low operating supply current of 750µA and a maximum output current of 50mA per channel. Designed for a 2.5V to 5.5V supply range, it boasts a high common mode rejection ratio of 80dB and a power supply rejection ratio of 90.46dB. The CMOS technology ensures 10pA input bias current and 500µV input offset voltage, operating across a -40°C to 85°C temperature range.
PackageSSOP
Current3.8mA
Quick Jump:
Technical Specifications
Texas Instruments OPA4340EA/250 technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 5.5MHz |
| Package/Case | SSOP |
| Common Mode Rejection Ratio | 80dB |
| Gain Bandwidth Product | 5.5MHz |
| Input Bias Current | 10pA |
| Input Offset Voltage (Vos) | 500uV |
| Lead Free | Lead Free |
| Max I/O Voltage | 500uV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 750uA |
| Output Current per Channel | 50mA |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 90.46dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MicroAmplifier™ |
| Slew Rate | 6V/µs |
| Supply Current | 3.8mA |
| Technology | CMOS |
| Thickness | 1.5mm |
| Unity Gain Bandwidth Product | 5.5MHz |
| Voltage Gain | 124dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OPA4340EA/250 Datasheet
Download the complete datasheet for Texas Instruments OPA4340EA/250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

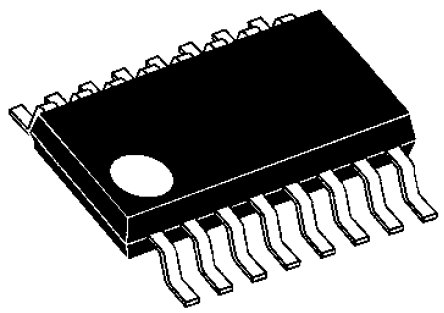

Product Images
