High voltage FET-input operational amplifier featuring a 2MHz gain bandwidth product and 15V/µs slew rate. This general-purpose amplifier offers a wide operating supply voltage range from 10V to 45V, with a maximum dual supply voltage of 45V. It boasts a low input bias current of 100pA and an input offset voltage of 1.5mV. The amplifier operates across a temperature range of -55°C to 125°C and is RoHS compliant.
Current4.7mA
Quick Jump:
Technical Specifications
Texas Instruments OPA445ADDAR technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 2MHz |
| Common Mode Rejection Ratio | 80dB |
| Gain Bandwidth Product | 2MHz |
| Input Bias Current | 100pA |
| Input Offset Voltage (Vos) | 1.5mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 45V |
| Min Dual Supply Voltage | 10V |
| Max I/O Voltage | 5mV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Nominal Gain Bandwidth Product | 2MHz |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 4.2mA |
| Operating Supply Voltage | 45V |
| Output Current | 15mA |
| Output Current per Channel | 15mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 15V/µs |
| Supply Current | 4.7mA |
| Voltage Gain | 110dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OPA445ADDAR Datasheet
Download the complete datasheet for Texas Instruments OPA445ADDAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

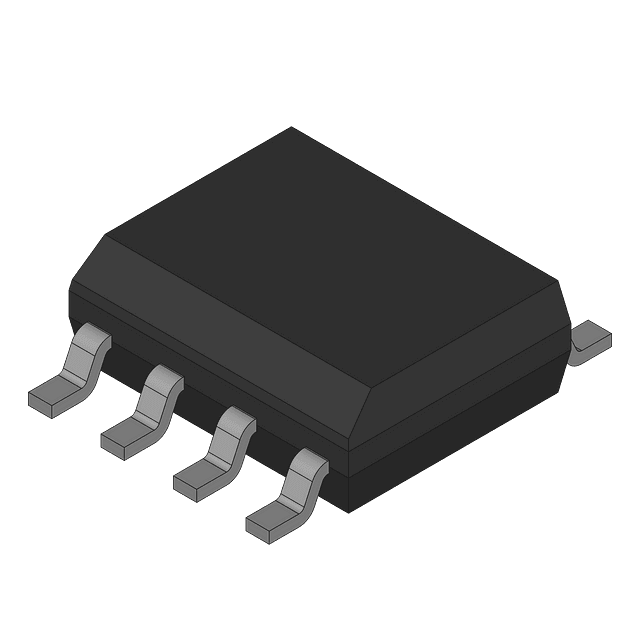

Product Images
