High voltage FET-input operational amplifier featuring a 2MHz bandwidth and 15V/µs slew rate. This general-purpose amplifier offers a 2MHz gain bandwidth product and 110dB voltage gain, with a low 100pA input bias current. Operates with dual supply voltages from 10V to 45V, supporting a maximum operating supply voltage of 45V. Packaged in an 8-SOIC (D) case, this RoHS compliant component is suitable for a wide temperature range of -55°C to 125°C.
PackageD
Current4.7mA
Quick Jump:
Technical Specifications
Texas Instruments OPA445AU technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
2MHz
Package/Case
D
Common Mode Rejection Ratio
80dB
Dual Supply Voltage
40V
Gain Bandwidth Product
2MHz
Input Bias Current
100pA
Input Offset Voltage (Vos)
5mV
Lead Free
Lead Free
Max Dual Supply Voltage
45V
Min Dual Supply Voltage
10V
Max I/O Voltage
5mV
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Nominal Gain Bandwidth Product
2MHz
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
4.2mA
Operating Supply Voltage
45V
Output Current
15mA
Output Current per Channel
15mA
Package Quantity
75
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
15V/µs
Supply Current
4.7mA
Technology
BIFET
Unity Gain Bandwidth Product
2MHz
Voltage Gain
110dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA445AU Datasheet
Download the complete datasheet for Texas Instruments OPA445AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

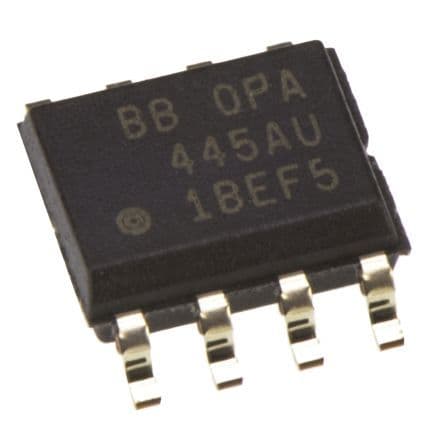

Product Images
