High-performance operational amplifier featuring a 7.5MHz bandwidth and 50mA output current, optimized for gains greater than 5. This general-purpose op-amp offers a 23V/µs slew rate and 110dB voltage gain, operating from dual supplies of 10V to 40V. With a low input bias current of 100pA and 1mV input offset voltage, it is housed in a 7-pin TO-220 package, suitable for operation between -40°C and 125°C.
PackageTO-220-7
Current6.5mA
Quick Jump:
Technical Specifications
Texas Instruments OPA453TA technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
7.5MHz
Package/Case
TO-220-7
Common Mode Rejection Ratio
86dB
Dual Supply Voltage
28V
Gain Bandwidth Product
7.5MHz
Height
8.38mm
Input Bias Current
100pA
Input Offset Voltage (Vos)
1mV
Lead Free
Lead Free
Length
10.17mm
Max Dual Supply Voltage
40V
Min Dual Supply Voltage
10V
Max I/O Voltage
3mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Nominal Gain Bandwidth Product
7.5MHz
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Operating Supply Current
5.5mA
Operating Supply Voltage
40V
Output Current
50mA
Output Current per Channel
50mA
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
23V/µs
Supply Current
6.5mA
Voltage Gain
110dB
Width
4.58mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA453TA Datasheet
Download the complete datasheet for Texas Instruments OPA453TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

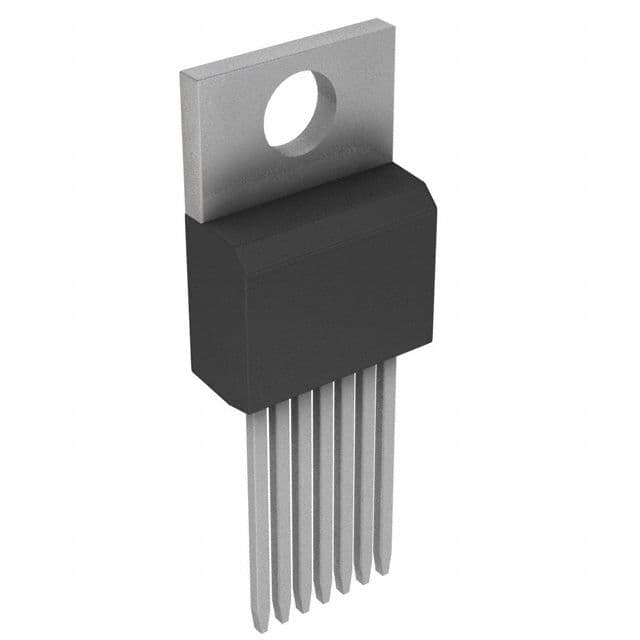

Product Images
