High output current operational amplifier featuring a 10A output current capability and 1.6MHz bandwidth. This single-channel amplifier operates with dual supply voltages from ±10V to ±35V, or a single supply from 20V to 70V. Key specifications include a 10V/µs slew rate, 95dB common mode rejection ratio, and 2mV input offset voltage. Packaged in a TO-220 case, this RoHS compliant BIFET technology amplifier is designed for demanding power applications.
PackageTO-220
Current25mA
Quick Jump:
Technical Specifications
Texas Instruments OPA541AP technical specifications.
General
Amplifier Type
POWER
Bandwidth
1.6MHz
Package/Case
TO-220
Common Mode Rejection Ratio
95dB
Dual Supply Voltage
30V
Gain Bandwidth Product
1.6MHz
Height
4.5mm
Input Bias Current
50pA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Length
20.02mm
Max Dual Supply Voltage
35V
Min Dual Supply Voltage
10V
Max I/O Voltage
10mV
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Supply Voltage
70V
Min Supply Voltage
20V
Nominal Gain Bandwidth Product
1.6MHz
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
20mA
Operating Supply Voltage
35V
Output Current
10A
Output Current per Channel
10A
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
10V/µs
Supply Current
25mA
Technology
BIFET
Unity Gain Bandwidth Product
1.6MHz
Voltage Gain
97dB
Width
10.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA541AP Datasheet
Download the complete datasheet for Texas Instruments OPA541AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

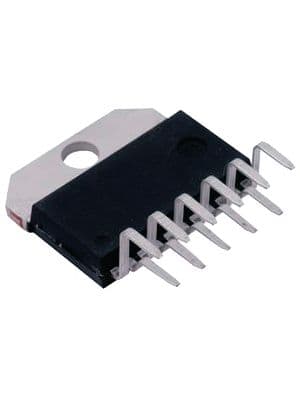

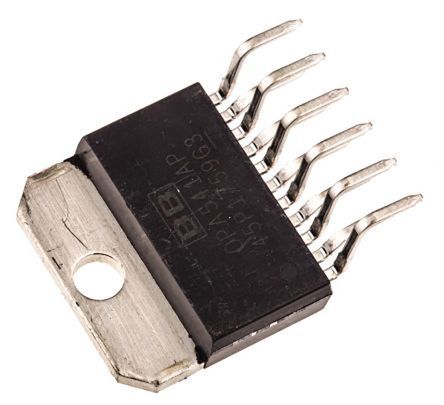

Product Images
