High-voltage, high-current operational amplifier featuring a 1MHz gain bandwidth product and 2A output current. This single-channel, general-purpose op amp offers a wide operating voltage range from ±4V to ±30V (dual) or 8V to 60V (single), with a maximum output current per channel of 750mA. Designed for surface mounting in a TO-263 package, it operates from -40°C to 85°C and includes shutdown capability. Key specifications include 80dB CMRR, 1mV input offset voltage, 500nA input bias current, and a 6V/µs slew rate.
Frequency1kHz
PackageTO-263
Current15mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments OPA547FKTWT technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1MHz |
| Package/Case | TO-263 |
| Common Mode Rejection Ratio | 80dB |
| Gain Bandwidth Product | 1MHz |
| Height | 4.65mm |
| Input Bias Current | 500nA |
| Input Offset Voltage (Vos) | 1mV |
| Lead Free | Lead Free |
| Length | 10.41mm |
| Max Dual Supply Voltage | 30V |
| Min Dual Supply Voltage | 4V |
| Max Frequency | 1kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 60V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 30V |
| Output Current | 2A |
| Output Current per Channel | 750mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 6V/µs |
| Supply Current | 15mA |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 115dB |
| Width | 9.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OPA547FKTWT Datasheet
Download the complete datasheet for Texas Instruments OPA547FKTWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

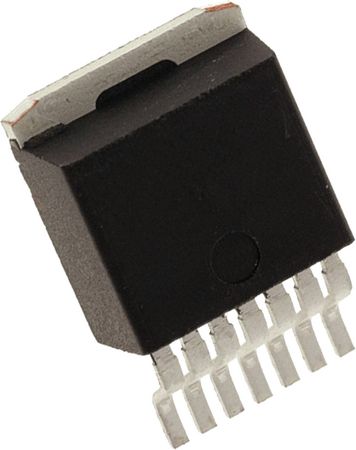

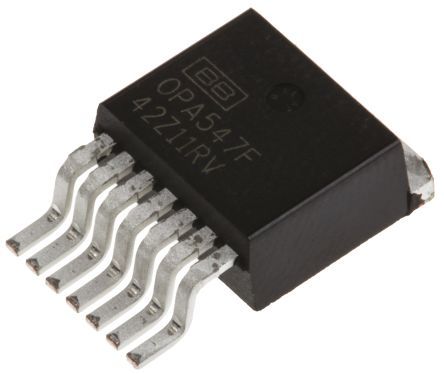

Product Images
