High-voltage, high-current power operational amplifier featuring a 1MHz bandwidth and 5A output current. This single-channel amplifier offers a wide output voltage swing, with a maximum supply voltage of 60V and a dual supply voltage range of 4V to 30V. It boasts a 98dB voltage gain, 80dB common mode rejection ratio, and a 10V/µs slew rate. Packaged in a TO-220 case, this lead-free and RoHS compliant component operates from -40°C to 85°C.
PackageTO-220
Current20mA
Quick Jump:
Technical Specifications
Texas Instruments OPA548TG3 technical specifications.
General
Amplifier Type
POWER
Bandwidth
1MHz
Package/Case
TO-220
Common Mode Rejection Ratio
80dB
Dual Supply Voltage
9V
Gain Bandwidth Product
1MHz
Height
4.6mm
Input Bias Current
500nA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Length
10.16mm
Max Dual Supply Voltage
30V
Min Dual Supply Voltage
4V
Max I/O Voltage
10mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
60V
Min Supply Voltage
8V
Nominal Gain Bandwidth Product
1MHz
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Operating Supply Current
17mA
Operating Supply Voltage
30V
Output Current
3A
Output Current per Channel
5A
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
10V/µs
Supply Current
20mA
Voltage Gain
98dB
Width
8.34mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA548TG3 Datasheet
Download the complete datasheet for Texas Instruments OPA548TG3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

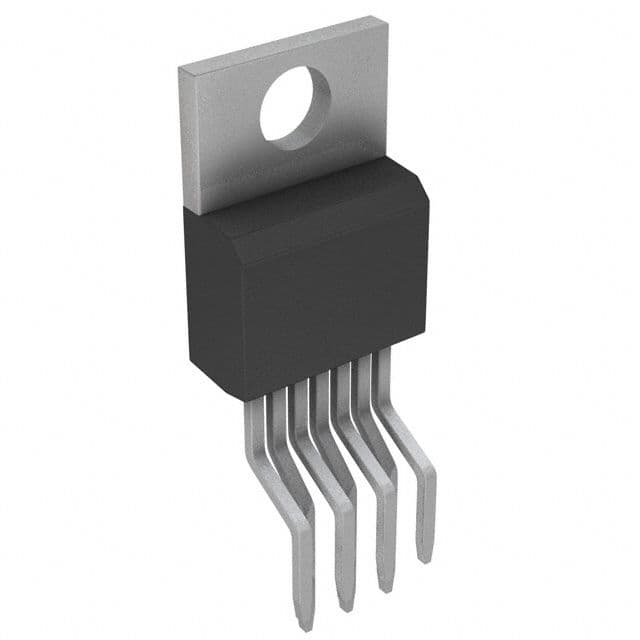

Product Images
